HY-PW2001-RB / How to Setup Hybrone Smart RGB LED Bulb ?

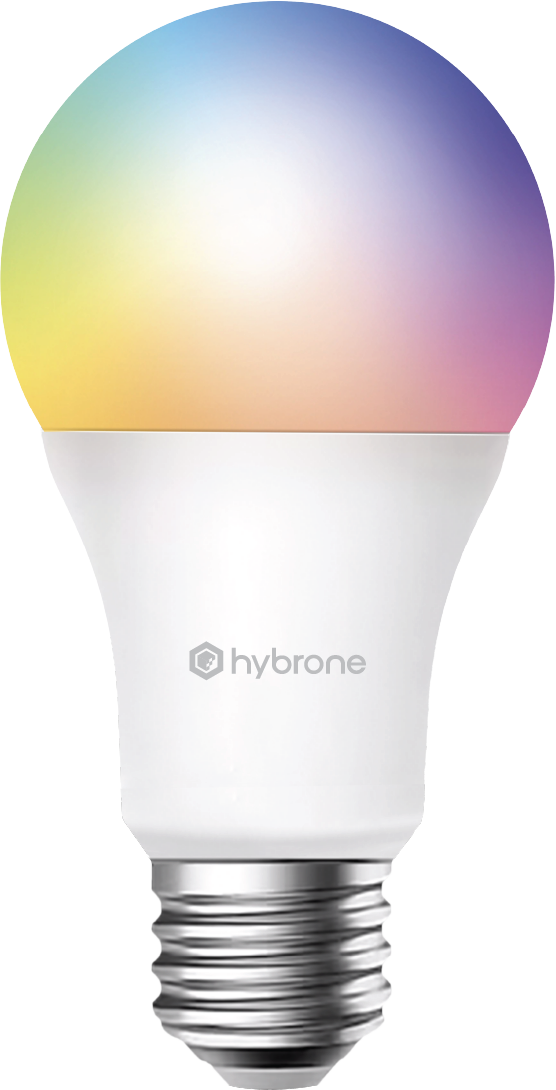

Hybrone Smart RGB LED Bulb

HY-PW2001-RB

WARNING

Do not dismantle or modify the device, and if you encounter any malfunctions during use, do not attempt to repair the device yourself; contact authorized service personnel.

Ensure that the device is properly seated when attaching it to the socket.

Keep the device away from detergents, chemical cleaners, and solvent chemicals.

Avoid using the device in excessively hot or cold environments.

The device should only be used indoors; outdoor use may cause damage.

Keep the device out of reach of children and pets.

Do not place the device near a heat source and keep it away from flammable or combustible materials.

Protect the device from the risks of impact or falling.

Maintain data privacy and use strong passwords to keep your device secure.

 Implement security measures to restrict and authorize access to your network.

Do not expose the device directly to water or excessively humid environments.

Installation

1. Before starting the installation of the device, please turn off the main electrical switch of your home. If there is already a bulb connected to the fixture, remove the bulb by turning it counterclockwise. It is important to wait for the bulb to cool down before removing it for safety reasons.

2. Insert the device into an E27 type socket by twisting it clockwise. Do not force the device when inserting it and ensure it is properly seated.

3. After installing the device, turn on the electrical switch and check if the device is functioning properly.

WARNING
Before beginning the installation of the device, ensure to turn off the main electrical switch of your home to prevent the risk of electric shock. Do not touch the device with wet hands to avoid the risk of electric shock.

Technical Specs

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the Hybrone Smart RGB LED Bulb.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
For device monitoring and receiving notifications, an active internet connection is required. The device setup is done through the Hybrone mobile application. The necessary steps to be taken are shown in the application's instructions. Before starting the setup via the application, router settings may need to be configured. The device supports the 2.4 GHz Wi-Fi frequency band. Router Wi-Fi frequency should be set to the 2.4 GHz band. Also, make sure to note down the Wi-Fi network name and password.

STEP 2

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

 By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

When power is first supplied to the device, it operates in pairing mode and starts rapidly flashing in red.

If the device does not start flashing rapidly in red when power is supplied, quickly toggle the wall switch controlling the device 5 times.

Once the device enters pairing mode, it will start rapidly flashing in red.

Toggle the wall switch controlling the device quickly 5 times; it will start rapidly flashing in red (approximately 2 times per second). Then, toggle the wall switch controlling the device quickly 5 times again; the device will start flashing slowly in red (approximately once every 3 seconds).

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone account.

ATTENTION
The information contained in the user manual is for reference only and does not constitute a commitment of any kind. Without the written permission of the manufacturer, no person or organization may remove or copy part or all of the contents of this
User manual and shall not disseminate it in any way. As technology is constantly updated, the manufacturer reserves the right to make changes to the user manual without prior notice. If the user manual and actual operations are inconsistent, the final interpretation herein rests with the manufacturer.
