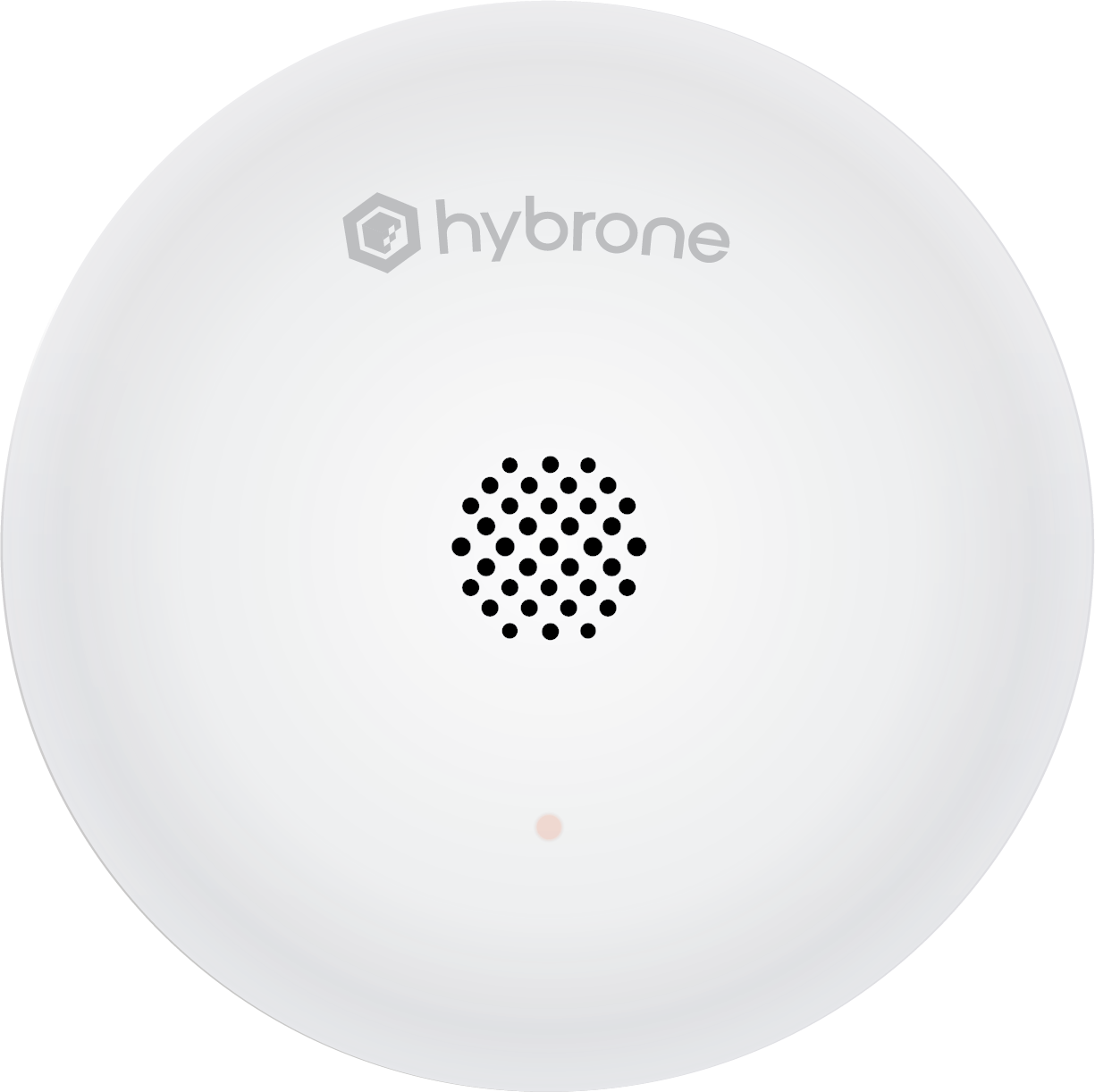

About the Hybrone Smart Flood Sensor
HY-SW1031-WL
How does Hybrone Flood Sensor works ?
Hybrone Flood Sensor detects water leakage when the blue LED indicator flashes once and will go out and a short beep will sound for 1 minute then it will be silent for 1 minute and if the alarm condition persists will continue in the cycle. Hybrone Flooding Automatically when its sensor detects no water will return to normal operation.
Technical Specifications
Working Voltage | DC3V (1xCR17335/CR123A battery) |
Alarm Display | Blue LED Indicator |
Alarm Sound | >75dB (at a distance of 1 meter) |
Communication | WiFi 2.4GHz & Bluetooth |
Coverage Area | <75m (Outdoor indoor) |
Operating Temperature | 0°C ~50°C |
Operating Ambient Humidity | <95%RH (non-condensing) |
Dimensions | 69mm (diameter) x 27.6mm (height) |
Protection | IP 67 protection class |

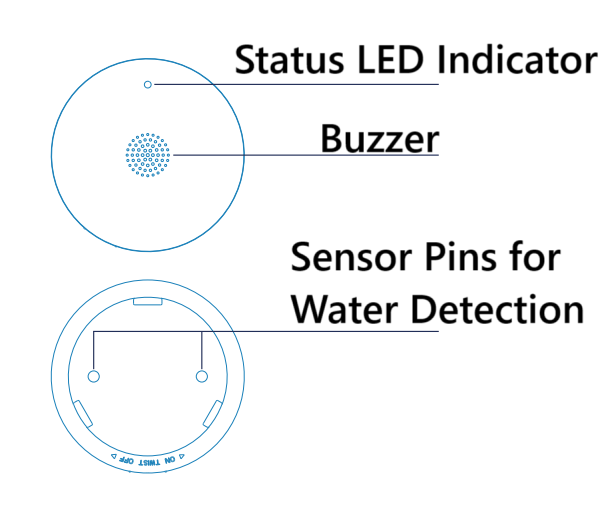

Device Indicators
Device Status | LED Indicator | Alarm Sound |
EZ Network Connectivity | Blue LED Fast Flasher | / |
AP Network Connectivity | Blue LED Slow Flasher | / |
Network Connecting Succes/Failure | Blue LED Off | / |
Alarm | Blue LED Flashes Once | Buzzer ''Di Di Di'' |
