How to Setup Hybrone Smart Flood Sensor ?

Hybrone Smart Flood Sensor

HY-SW1031-WL

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the Hybrone Flood Sensor.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
An active internet connection is required to track the device and receive notifications.
Device setup is done with the Hybrone mobile application.
The instructions on the application show the necessary procedures.
Before starting the setup, router settings may need to be adjusted. The device supports 2.4 GHz Wi-Fi frequency band. The router Wi-Fi frequency must be set to 2.4 GHz band. Also make a note of the Wi-Fi name and password. The device sends health information to the Hybrone server every 8 hours in the absence of any alarm. If 3 consecutive times no health information is received, the device is considered offline.

STEP 2

Device Installation

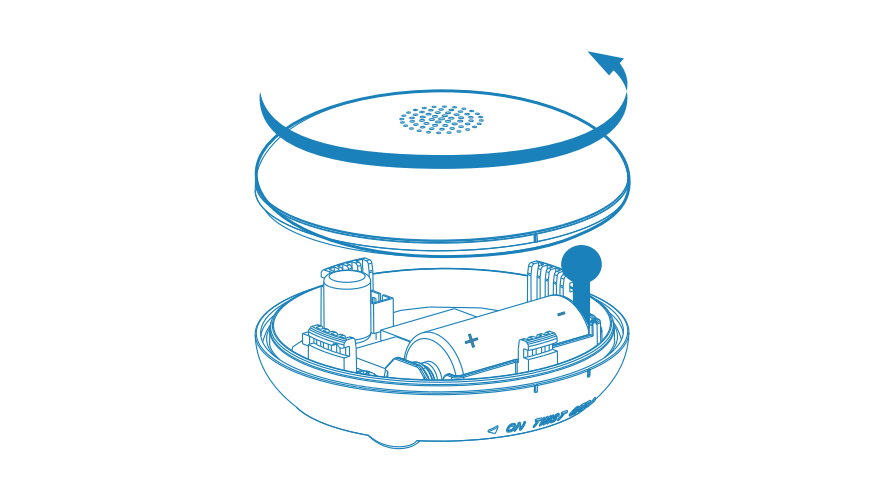

Turn the top cover counterclockwise to open the unit and remove the battery isolation tape. This will start the device and the automatic by the Hybrone Mobile App as will be available.

STEP 3

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

 By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

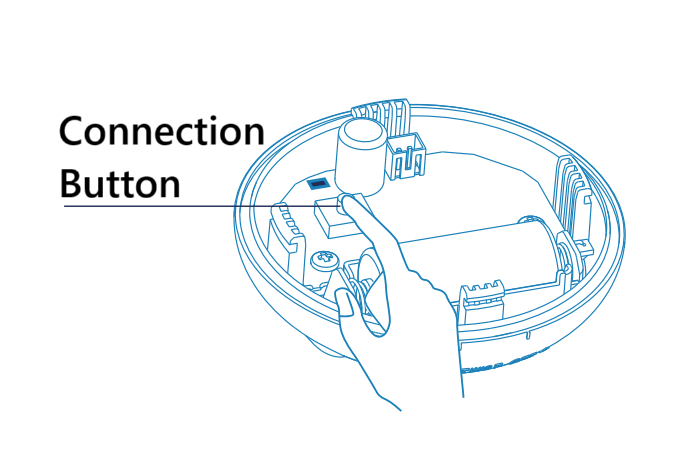

Press and hold the connection button for 5 seconds, the blue LED will blink rapidly (about 2 times per second)

Press and hold the connection button for 5 seconds, the blue LED will flash quickly (about 2 times per second), then press and hold the button again for 5 seconds, the blue LED will flash slowly (about 1 time per 3 seconds)

To add new devices according to the connection mode you set In the wizard, select the same mode on the appropriate screen and continue.

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone Account.

Prepare the Device

 After the device attachment process is complete, the top the dash mark on the cover and "CLOSED" on the bottom cover align with the position mark and press "ON" top until it lines up with the position marker. Turn the cover clockwise.

Installation

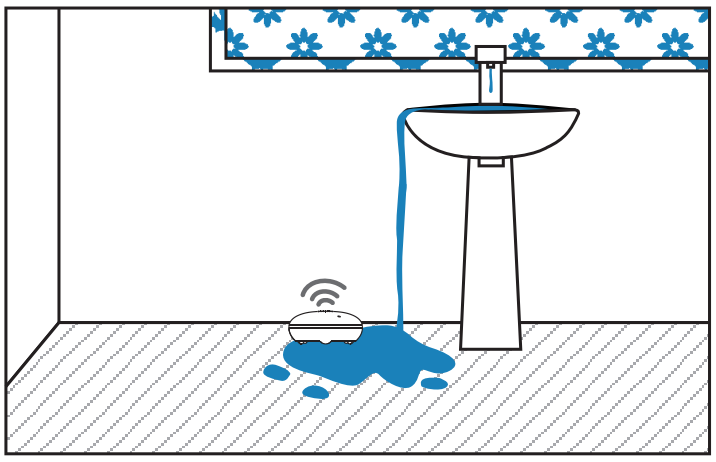

Place the device on a surface where water leakage may occur.

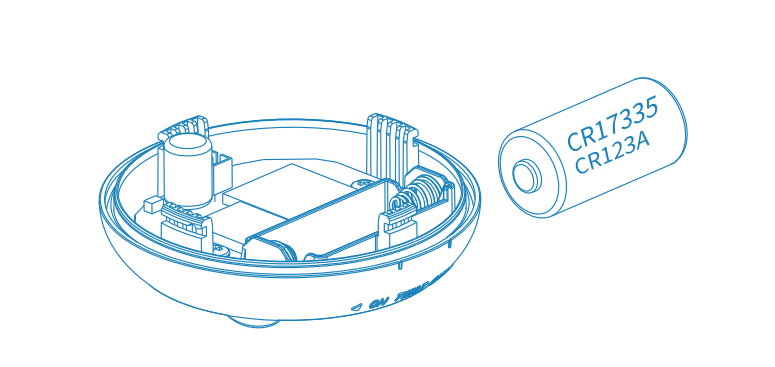

Battery Replacement

1. Turn the top cover counterclockwise.

2. Remove the battery.

3. Then, insert a new battery of the same type.

4. Align the short line mark on the top cover with the "CLOSED" position mark on the bottom cover.

5. Rotate the top cover clockwise until it aligns with the "OPEN" position mark.

Attention: Please dispose of the used battery in the recycling bin to protect the environment and nature.

Problem Resolution

WARNING

In highly corrosive environments (such as H2S, SOX, CL2, HCl, etc.), its usage is prohibited.
Do not subject the product to strong impacts and vibrations, as this may cause damage to the product and accessories, leading to malfunction.
Organic solvents cannot be used to clean the product. The user can clean the product surface with a soft cloth instead.

ATTENTION
The information contained in the user manual is for reference only and does not constitute a commitment of any kind. Without the written permission of the manufacturer, no person or organization may remove or copy part or all of the contents of this
User manual and shall not disseminate it in any way. As technology is constantly updated, the manufacturer reserves the right to make changes to the user manual without prior notice. If the user manual and actual operations are inconsistent, the final interpretation herein rests with the manufacturer.
