HY-PW2011-SP / How to Setup Hybrone Single Smart Socket ?

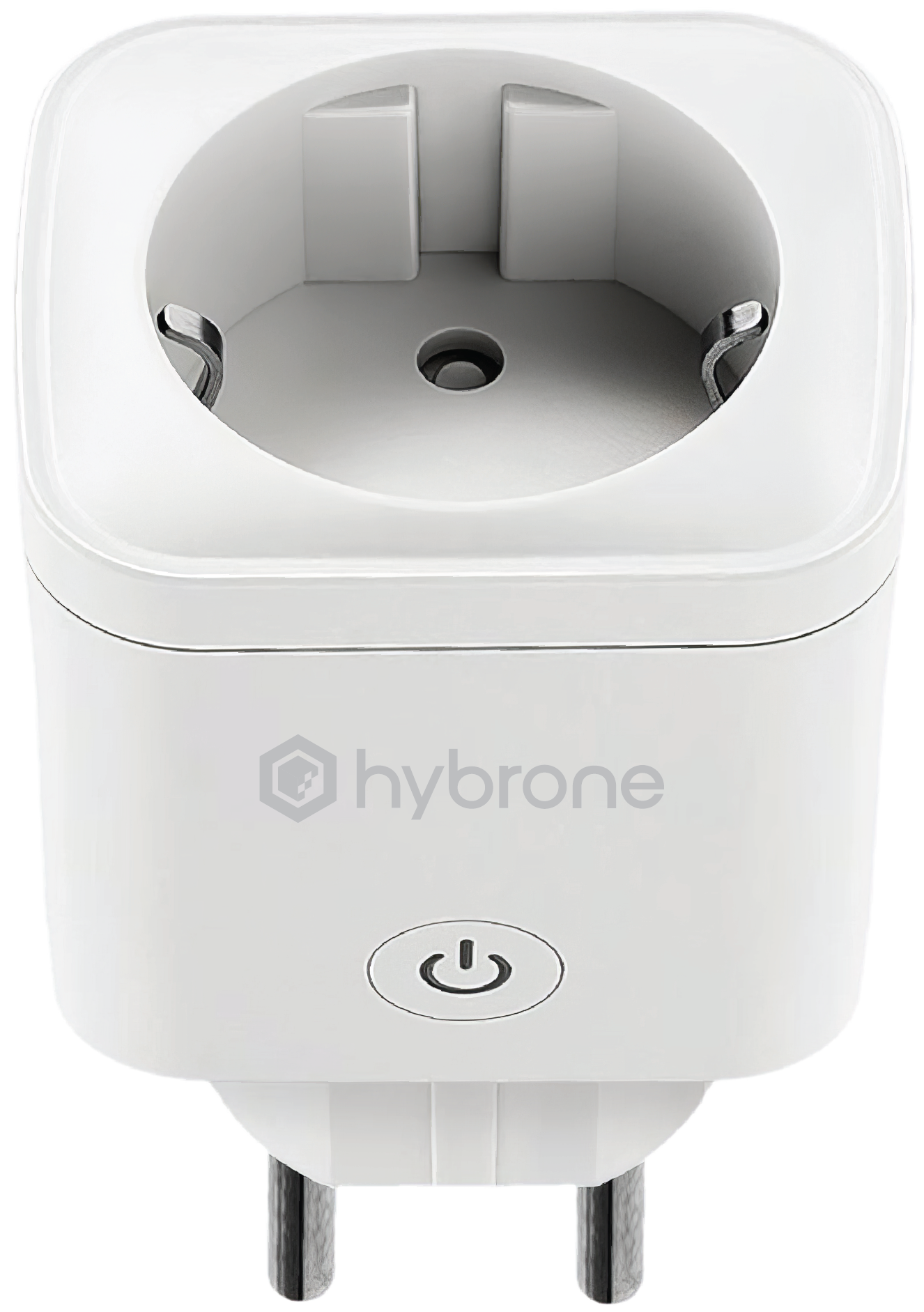

Hybrone Single Smart Socket

HY-PW2011-SP

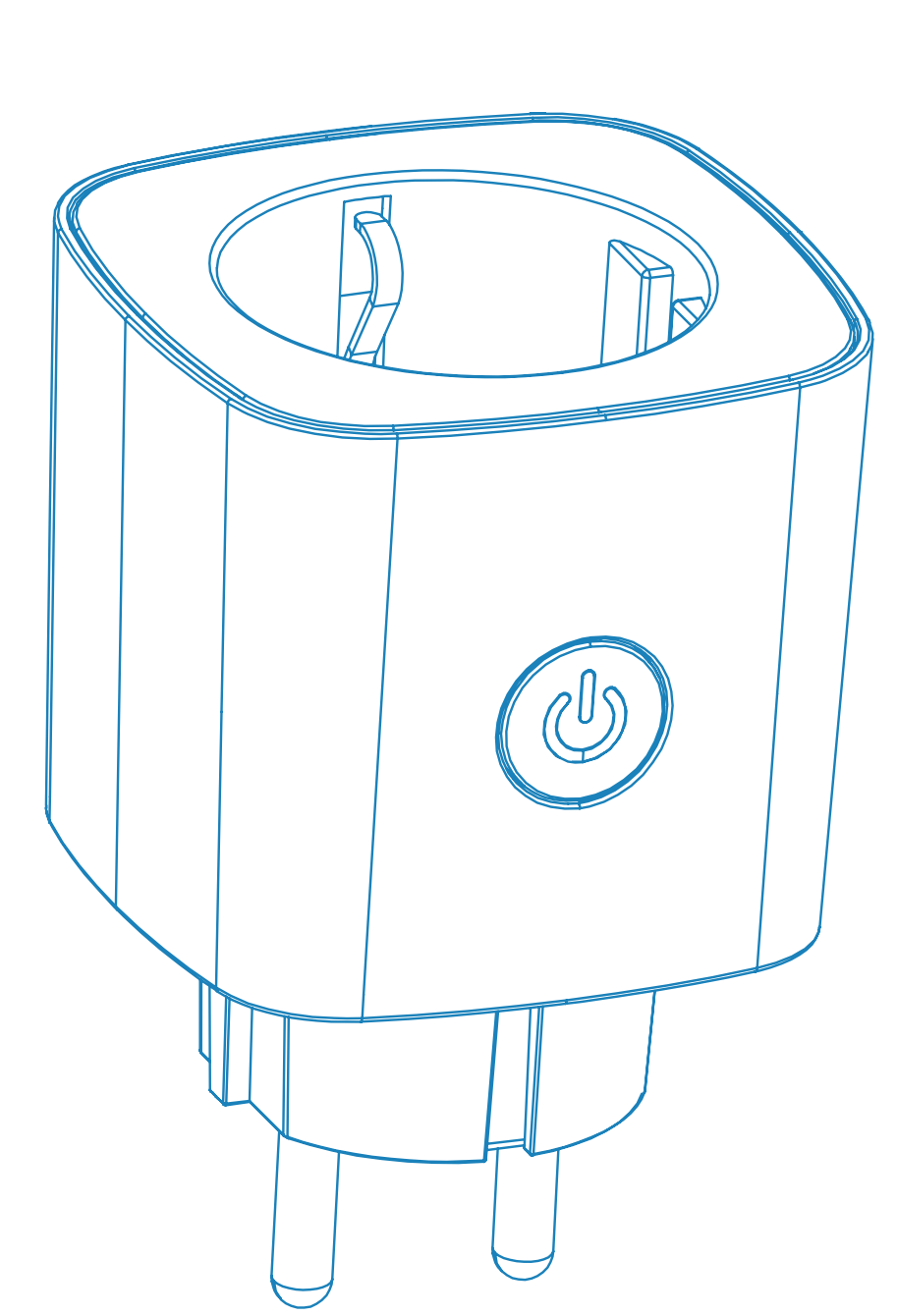

Installation

1. To turn on/off the sockets, press the power buttons on the relevant side of the device.

2. The socket can be independently controlled via Hybrone.

WARNING
Please refrain from using the Smart Wi-Fi Outlet in wet or humid areas such as bathrooms and laundry rooms.

Device Configuration

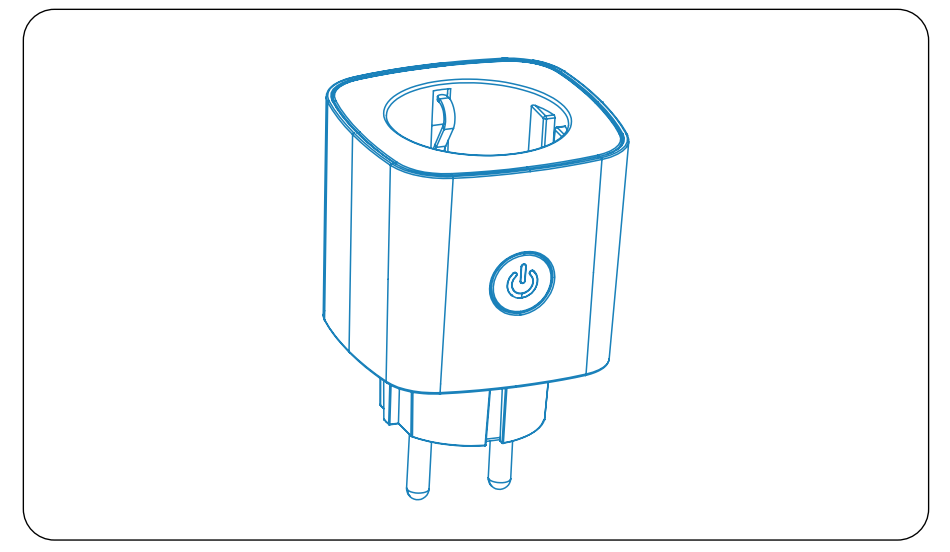

Press the button on the Single Smart Wi-Fi Socket. The red LED will blink rapidly.

If the LED does not blinking, try resetting the device.

Device Reset

If the Single Smart Wi-Fi Socket fails to respond to commands, you may need to reset the device.

1. Unplug the Smart Wi-Fi Socket.

2. Plug the device back into the outlet.

3. Press and hold the button on the device until the LED indicator blinks rapidly. (Between 5 to 10 seconds)

4. Follow the steps in the configuration guide.

Technical Specs

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the

Hybrone WiFi Single Smart Plug.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
For device monitoring and receiving notifications, an active internet connection is required. The device setup is done through the Hybrone mobile application. The necessary steps to be taken are shown in the application's instructions. Before starting the setup via the application, router settings may need to be configured. The device supports the 2.4 GHz Wi-Fi frequency band. Router Wi-Fi frequency should be set to the 2.4 GHz band. Also, make sure to note down the Wi-Fi network name and password.

STEP 2

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

 By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

Press and hold the connection button for 5 seconds, the blue LED will blink rapidly (about 2 times per second)

Press and hold the connection button for 5 seconds, the blue LED will flash quickly (about 2 times per second), then press and hold the button again for 5 seconds, the blue LED will flash slowly (about 1 time per 3 seconds)

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone account.

ATTENTION
The information contained in the user manual is for reference only and does not constitute a commitment of any kind. Without the written permission of the manufacturer, no person or organization may remove or copy part or all of the contents of this
User manual and shall not disseminate it in any way. As technology is constantly updated, the manufacturer reserves the right to make changes to the user manual without prior notice. If the user manual and actual operations are inconsistent, the final interpretation herein rests with the manufacturer.
