HY-PW2052-PU / How to Setup Hybrone Smart 4 Socket & 4 Port USB Group Outlet ?

About the Hybrone Smart 4 Socket & 4 Port USB Group Outlet

HY-PW2052-PU

Installation

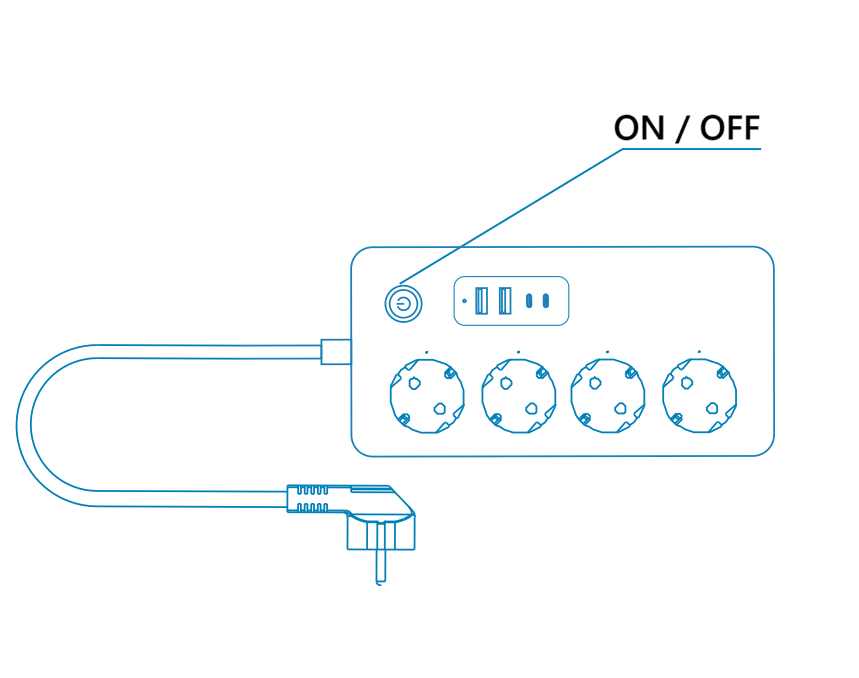

1. Press the power button to turn on/off all sockets and USB outputs.

Each USB port provides a maximum output of 2A. Smart Socket USB ports provide a total maximum output of 2A.

Device Configuration

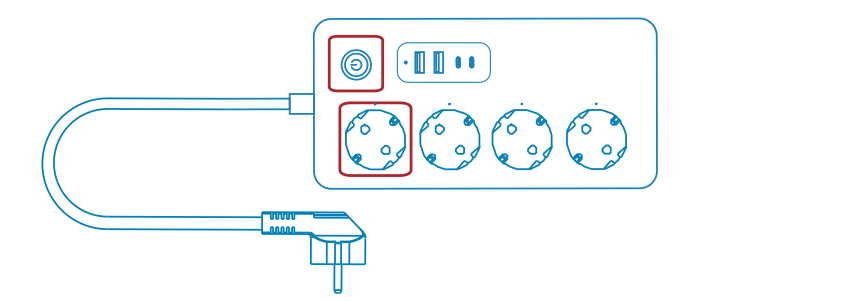

Press the power button on the smart socket. The LED will blink rapidly in green.

If the LED does not blinking, try resetting the device.

Safety Instructions

1. Do not disassemble or remove any part of the device.

2. Do not immerse the device in water or any liquid.

3. Do not place the device near a heat source or expose it to high temperatures.

4. Do not exceed the specified maximum power rating.

5. Use only in indoor environments.

WARNING
Please refrain from using the Smart Wi-Fi Outlet in wet or humid areas such as bathrooms and laundry rooms.

Device Reset

If the  Hybrone Smart 4 Socket & 4 Port USB Group Outlet fails to respond to commands, you may need to reset the device.

1. Unplug the Smart Wi-Fi Socket.

2. Plug the device back into the outlet.

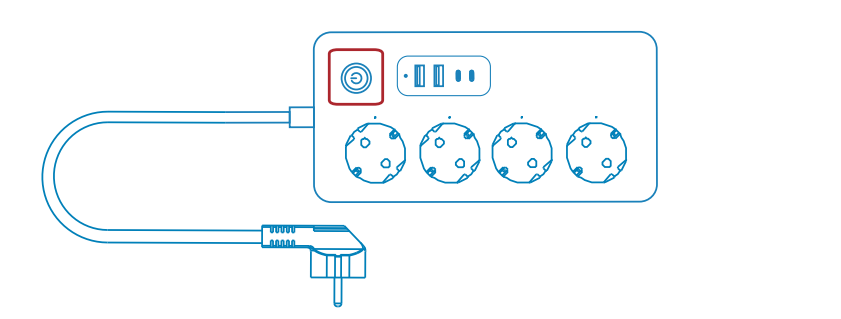

3. Press and hold the button on the device until the LED indicator blinks rapidly. (Between 5 to 10 seconds)

4. Follow the steps in the configuration guide.

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the Hybrone Smart 4 Socket & 4 Port USB Group Outlet.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
For device monitoring and receiving notifications, an active internet connection is required. The device setup is done through the Hybrone mobile application. The necessary steps to be taken are shown in the application's instructions. Before starting the setup via the application, router settings may need to be configured. The device supports the 2.4 GHz Wi-Fi frequency band. Router Wi-Fi frequency should be set to the 2.4 GHz band. Also, make sure to note down the Wi-Fi network name and password.

STEP 2

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

Press and hold the connection button for 5 seconds, the blue LED will blink rapidly (about 2 times per second)

Press and hold the connection button for 5 seconds, the blue LED will flash rapidly (approximately twice per second), then press the button again for 5 seconds, the blue LED will flash slowly (approximately once every 3 seconds). Depending on the connection mode you have set, select the same mode on the relevant screen in the new device addition wizard and continue.

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone account.
