HY-PW2031-PU / How to Setup Hybrone WiFi 3 USB Ports & Power Outlet ?

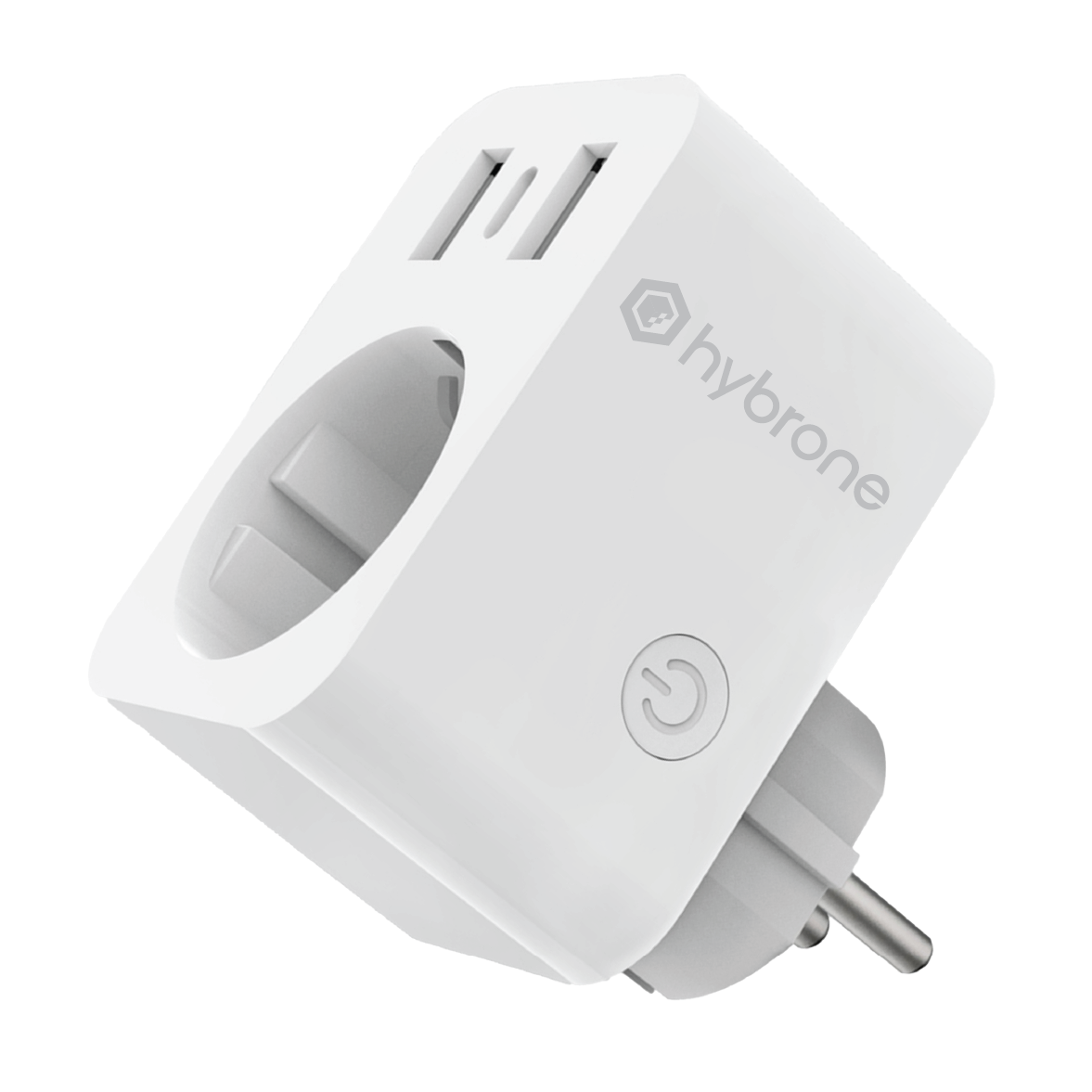

Hybrone WiFi 3 USB Ports & Power Outlet

HY-PW2031-PU

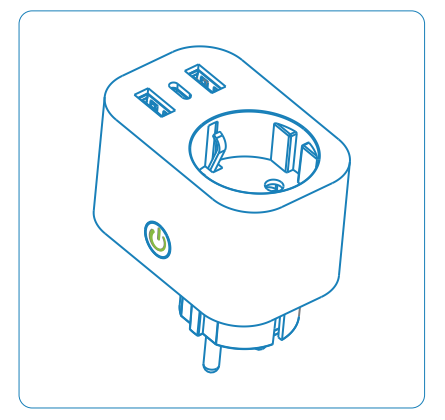

Installation

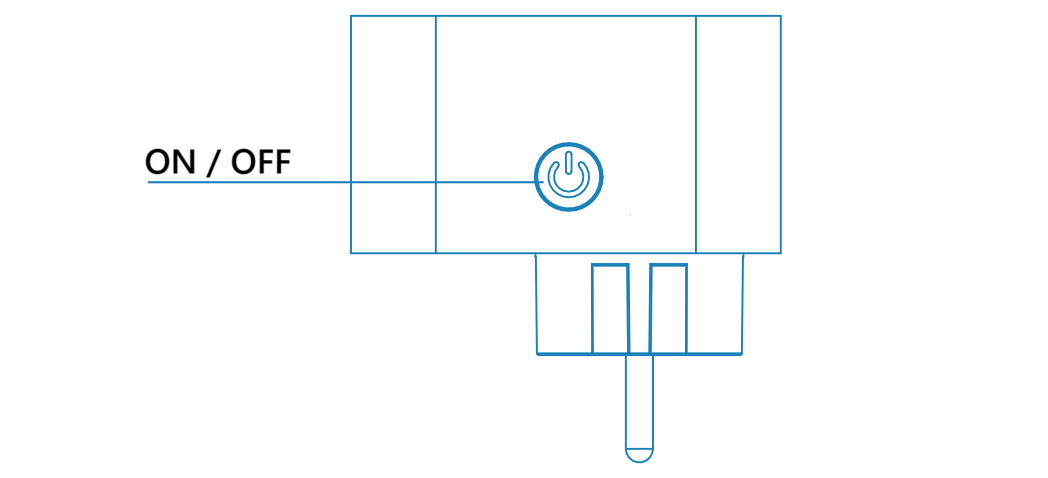

1. Press the power button to turn on/off the sockets and USB outputs.

2. Sockets and USB outputs can be independently controlled via Hybrone. However, USB outputs are not independent; they can be controlled together.

Each USB port provides a maximum output of 2.4A. Smart Socket USB ports provide a total maximum output of 2.4A.

WARNING
Please refrain from using the Smart Wi-Fi Outlet in wet or humid areas such as bathrooms and laundry rooms.

Device Configuration

Press the button on the Smart Wi-Fi Socket. The green LED will blink rapidly.

If the LED does not blinking, try resetting the device.

Device Reset

If the Smart Socket fails to respond to commands, you may need to reset the device.

1. Unplug the Smart Wi-Fi Socket.

2. Plug the device back into the outlet.

3. Press and hold the button on the device until the LED indicator blinks rapidly. (Between 5 to 10 seconds)

4. Follow the steps in the configuration guide.

Technical Specs

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the

Hybrone WiFi 3 USB Ports & Power Outlet.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
Device requires an active internet connection for tracking and receiving notifications. Device setup is done through the Hybrone mobile application. The necessary steps to be taken are shown in the instructions on the application. Before starting the installation via the application, router settings may need to be configured. The device supports the 2.4 GHz Wi-Fi frequency band. Router Wi-Fi frequency should be set to the 2.4 GHz band. Also, make a note of the Wi-Fi name and password.

STEP 2

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

 By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

Press and hold the connection button for 5 seconds, the blue LED will blink rapidly (about 2 times per second)

Press and hold the connection button for 5 seconds, the blue LED will blink rapidly (approximately twice per second), then press and hold the button again for another 5 seconds, the blue LED will blink slowly (approximately once every 3 seconds). Depending on the connection mode you've set, in the wizard for adding a new device, select the same mode on the relevant screen and proceed.

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone account.
