HY-SW1081-AQ / How to Setup Hybrone Smart Air Quality Sensor ?

Modified on Mon, 3 Jun at 4:18 PM

About the Hybrone Smart Air Quality Sensor

HY-SW1081-AQ

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the Hybrone Air Quality Sensor.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
An active internet connection is required to track the device and receive notifications.
Device setup is done with the Hybrone mobile application.
The instructions on the application show the necessary procedures.
Before starting the setup, router settings may need to be adjusted. The device supports 2.4 GHz Wi-Fi frequency band. The router Wi-Fi frequency must be set to 2.4 GHz band. Also make a note of the Wi-Fi name and password. The device sends health information to the Hybrone server every 8 hours in the absence of any alarm. If 3 consecutive times no health information is received, the device is considered offline.

STEP 2

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

Flashing Fast

Press and hold thekey for about 5 seconds, the network iconflashes rapidly (approximately twice per second), the interface has a 3-minute countdown is displayed and the device enters the EZ network connection state.

Flashing Slow

Press and hold thekey for about 5 seconds, the network iconflashes rapidly (approximately twice per second), then turns on the network press thekey briefly within 5 seconds to stop.

More then long press for about 5 seconds, the network icon flashes slowly (approximately every 3 seconds), on the interface 3 a countdown of minutes is displayed and the AP displays the network connection status enters.

According to the connection mode you have set, select the same mode on the relevant screen in the Add new device wizard and continue.

If networking is successful, theicon will remain lit and "ON LINE" is displayed on the interface, and then the device returns to the main interface. If networking cannot be done within 3 minutes, networking fails and remains on for one second and power off, "OFF LINE" is displayed on the interface and then thereturns to the main interface after seconds.

Tips

This guide due to the upgrade and update of the app, may differ slightly from the actual operation; please follow the instructions in the application follow.

If the network connection fails, please move the device closer to the gateway and try again.

Please add the device to the gateway first, then install and fix.

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone Account.

Wall Installation

1. Attach the positioning label to a suitable location.

2. Drill the holes with a Φ 5 mm drill bit.

Important : Drilling Do not damage any cables and please protect the detector from dust keep away.

3. Insert the plastic dowels into the drilled holes and screw heads approximately 5 Tighten the screws until mm is positioned outside.

4. Then hang the product on the screws to complete the installation.

Table Stand

1. For desktop use, use the stand bracket included in the box and place the device on a flat and dust free surface.

2. Make sure the device is stable and prevent CO2 from penetrating the device make sure that no objects are in the way.

Device Control & Buttons

1. In normal state, short press to change the display.

2. Switch to the left position in Setup mode.

3. In Setup mode, decrease the value one by one.

1. In normal state, short press to change the display.

2. In Setup mode, switch to the right position.

3. In Setup mode, increase the value one by one.

4. Long press (approx. 5 seconds) to enter the network enter the state.

1. Enter mute mode by short pressing in normal state.Mute mode, press briefly once more to exit.

2. In Setup mode, press briefly to return to the previous page,exit the current setting.

1. Turn the power on/off with a long press (about 5 seconds).

2. In normal condition, when powered by the AC adapter, a short press to turn the display off/on.

3. Press and hold theandbuttons simultaneously for about 2 seconds, the device will enter setup mode.

4. In setup mode, the setup of the current short press to enter the state.

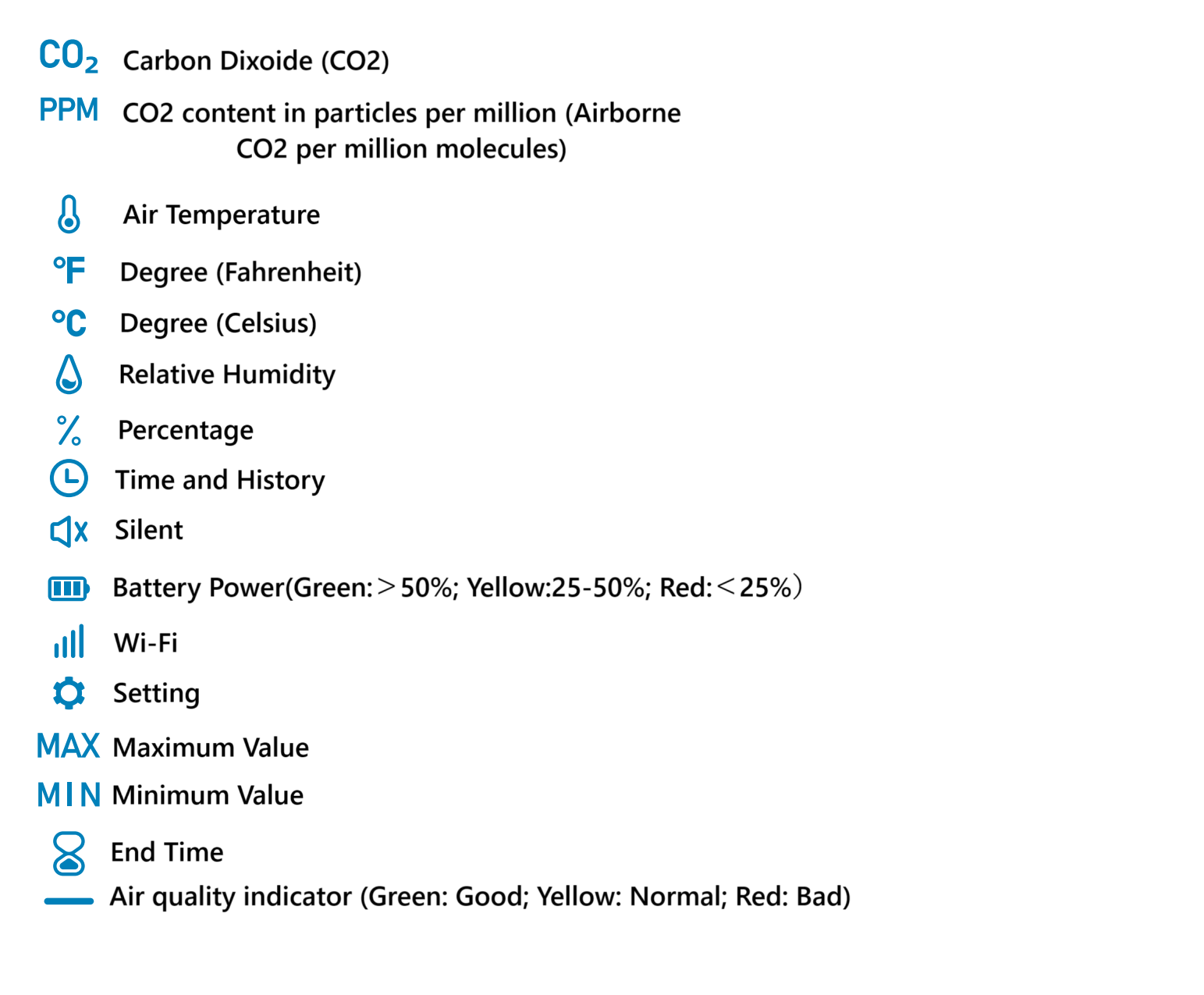

Symbols

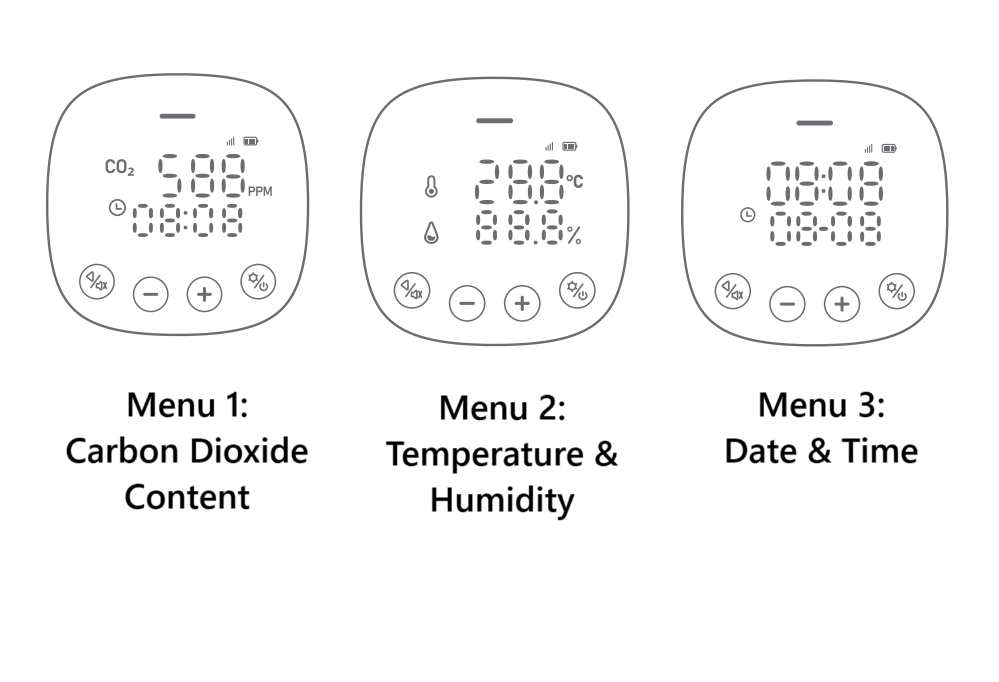

Screen Menu Pages

1. When the device is switched on, the CO2 menu will appear first.

2. Navigating to the previous and next page in standby mode.

Press the or icons for.

Menu Settings

1. Press and hold theandkeys simultaneously for approximately 2 seconds. hold, the device will enter setup mode and the setup iconwill light up.

2. Short press theorkey to turn the display on. Current screen Short press thekey to enter the setup status of the page.

CO2 Setting Page

1. Maximum CO2 alarm value: MAX and max. value flash, value Short pressorto increase/decrease

2. Min. CO2 alarm value: MIN and min. value flash, value Short press theorkey to increase/decrease.

3. Press thekey to switch between the max. and min. value settings short press.

4. Press to save the setting and return to the previous menu.

Temperature Setting Page

1. The " °C/°F " icon flashes, to toggle between

Short press theorbutton.

2. The maximum temperature value : MAX and max. value flash,

Short press theorkey to increase/decrease the value.

3. Minimum temperature value: The MIN and min. value flashes, the value

Short press theorkey to increase/decrease.

4. Pressto toggle between the maximum and minimum value settings.

short press the key.

5. Pressto save the setting and return to the previous menu.

Humidity Setting Page

1. Maximum Humidity value: MAX and max. value flash, value

Short pressorto increase/decrease

2. Minimum Humidity value: MIN and min. value flashes, value

Short press theorkey to increase/decrease.

3. Pressto toggle between the maximum and minimum value settings.

Press the button briefly.

4. Press thekey to save the setting and return to the previous menu.

Time and Date Setting Page

1. Number flashes, time and date Pressorto set short press.

2. Switch between time and date setting short press thekey to make the adjustment.

3. Press the key shortly to save the setting values and short press the key to return to the page press.

4. Note: After the device is connected to the network time and date will be synchronized.

Silent Mode Setting Page

1. Number flashes, time and date press theorbutton to set short press

2. Maximum and minimum values to toggle betweenshort press the key.

3. To save the values and to reset the previous pressto return to the page short press.

LED Indicators and Sounds

1. When the device is powered via adapter.

	LED	Indicator	Sound
The screen is off, CO2 level is good	Every 5 seconds flashes green	-	-
The screen is on, CO2 level is good	Lights green	Normal	-
The screen is off, CO2 level normal	Flashes yellow every 5 seconds	-	-
The screen is on, CO2 level normal	Lights Yellow	Normal	-
The screen is off, CO2 level is poor	Flashes red every 5 seconds	-	-
The screen is on, CO2 level is poor	Lights red	Normal	-
CO2 level good -> normal	30 seconds yellow flashes	Data 30 seconds flashes	-
CO2 level normal -> bad	30 seconds red flashes	Data 30 seconds flashes	30 seconds alarm sound alarm

2. When the device is used with batteries:

When the carbon dioxide level is "low", the display turns on, red LED and The display flashes and the alarm sounds for 30 seconds.

After that, the red LED and the display will stay on for 1 minute then the display turns off.

The red LED will flash every 5 seconds until the CO2 level returns to normal flashes, then the amber LED flashes every 5 seconds until the CO2 level returns to good flashes every second, and then the green LED flashes every five seconds flashes.

3. When "Silent Mode" is active:

When the carbon dioxide level is "low", the display will turn on, the red LED and the display will flash for 30 seconds. Then the red LED and display 1 remains illuminated for minutes and the display turns off.

The red LED lights every 5 seconds until the CO2 level returns to normal blinks, then the yellow LED will flash every 5 seconds until the CO2 level returns to good flashes every second and then the green LED flashes every 5 seconds goes out. The default time for "Silent Mode" is 22:00-08:00. This time can be changed in the settings.

4. Temperature and Humidity:

Temperature and humidity values below or above the specified ranges the other alerts are the same as the CO2 content, without the audible warning.

Default temperature values: Min. 15℃, Max. 35

Default humidity values: Min. 15%, Max. 90%.

Default values can be set in the settings menu.

Battery Information

This device contains one lithium ion battery. Batteries are for professional can be replaced or removed by persons.

Flammable pain, gas and do not charge and use in environments where there is a risk of explosion, such as dust.

Never incinerate the product! The battery may explode in a fire. This can also cause toxic substances will also be released. Charging the device only use the supplied micro USB cable and a suitable charger (power supply unit DC5V/1A). Charge the device do not leave unattended while it is happening.

Battery: Ensure normal operation of the device for approximately 6 hours. Can support and has a built-in charger protection design. First charge for at least 24 hours if you are charging once.(Battery life here value varies according to different conditions, so only for reference purposes).

Maintenance

Dusty appliances need to be cleaned. Air conditioning of devices dust accumulations at the inlets can be swept or blown away.

If necessary, you can remove dust with a brush.

The surface can be cleaned using a cloth slightly dampened with soapy water. can be cleaned.

Do not allow water to get into the appliance!

Do not clean the device in the dishwasher!

Sharp, pointed, abrasive or corrosive cleaning materials or hard brushes !

Do not use chemicals and do not use the device at high do not clean with flammable liquids.

Errors and Troubleshooting

Errors	Troubleshooting
Screen Failure	The power supply unit is powered and that the cable is firmly plugged into the device check the battery. Check the battery for more than 24 hours. charge it.
Slow Response	Air flow on the rear panel of the device that their channels are not blocked please check.
Device "Error" Notification	Please contact your seller.

ATTENTION
The information contained in the user manual is for reference only and does not constitute a commitment of any kind. Without the written permission of the manufacturer, no person or organization may remove or copy part or all of the contents of this
User manual and shall not disseminate it in any way. As technology is constantly updated, the manufacturer reserves the right to make changes to the user manual without prior notice. If the user manual and actual operations are inconsistent, the final interpretation herein rests with the manufacturer.
