HY-CW3014-PB / How to mount the Hybrone Outdoor Smart Wi-Fi Battery/Solar Panel Camera ?

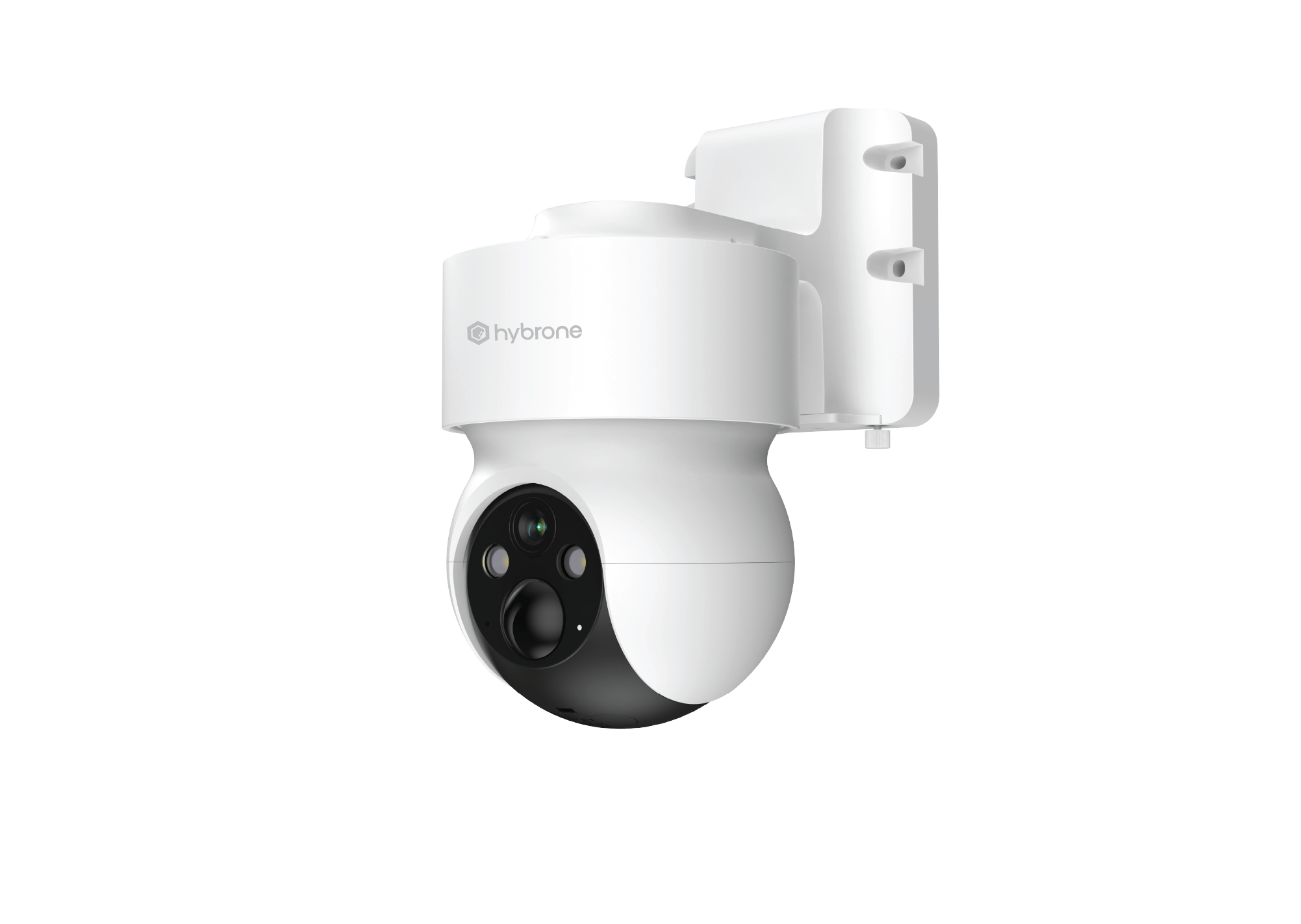

Hybrone Outdoor Smart Wi-Fi Battery / Solar Panel Camera

INSTALLATION

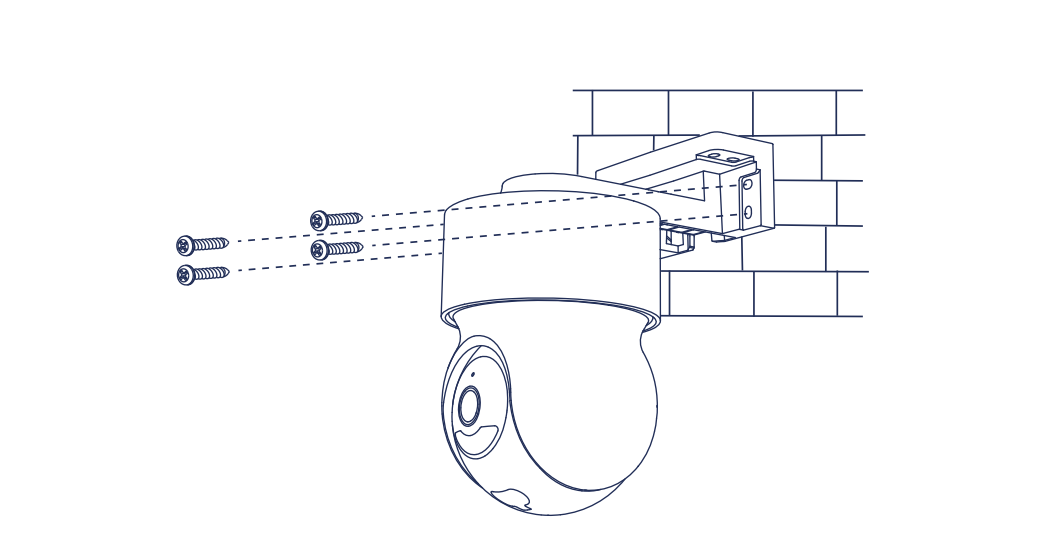

Wall Installation

Mount the camera on a smooth surface.

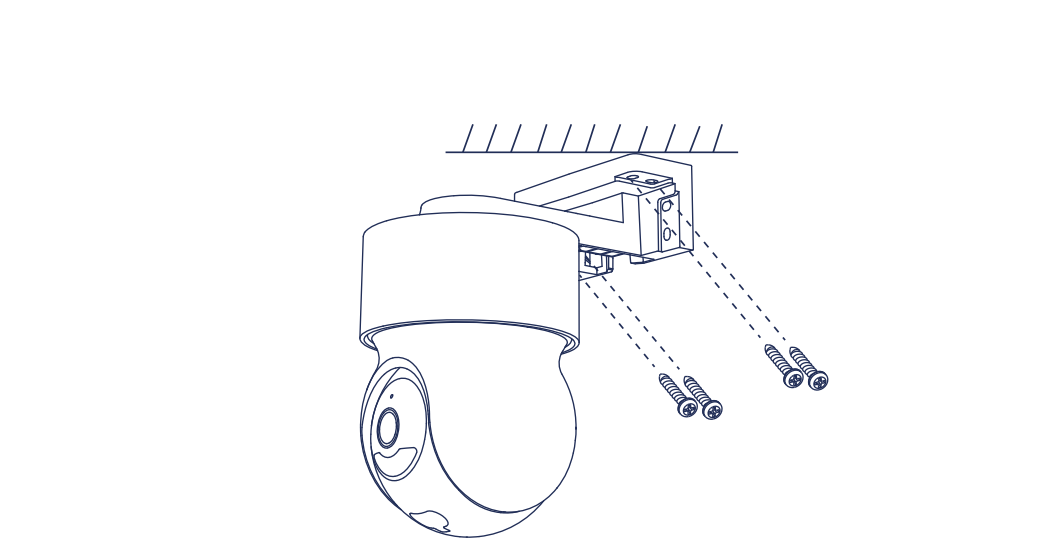

Ceiling Installation

Assemble the device carefully.

Required Ingredients

Hybrone Outdoor Smart Wi-Fi Battery/Solar Panel Camera

Mounting plate and screws

Drill and suitable bits

Screwdriver

Pen or marker

Dowels (selected according to wall type and material)

Ceiling and Wall Mounting Steps

1. Determining the Mounting Location:

Select the area where you will place the camera. This should be where the camera will have the best viewing angle.

Make sure there is a power source for the camera and a strong Wi-Fi signal.

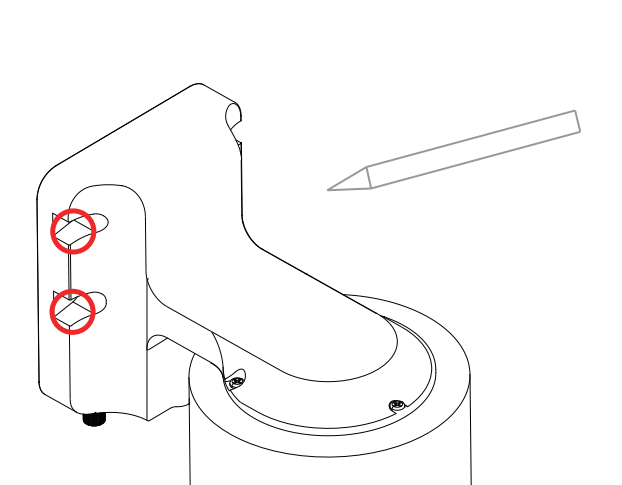

2. Preparing the Mounting Plate:

Place the mounting plate on the surface where you want to mount it.

Mark with a pencil where the plate will be screwed.

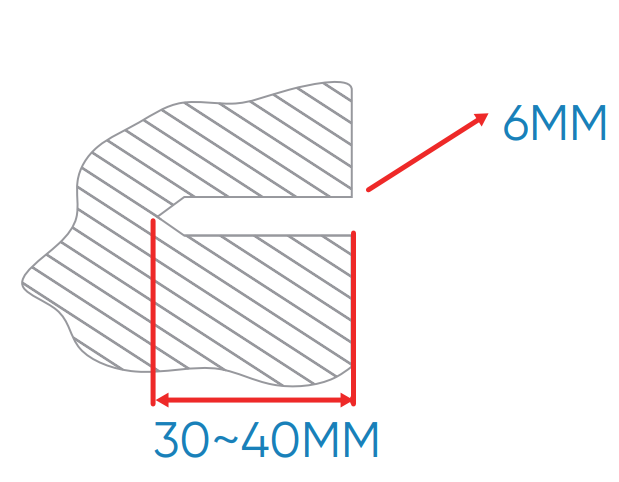

3. Drilling the Holes:

Use a drill to drill holes where you have marked.

Make sure that the holes match the material of the wall or ceiling (e.g. concrete, wood or drywall).

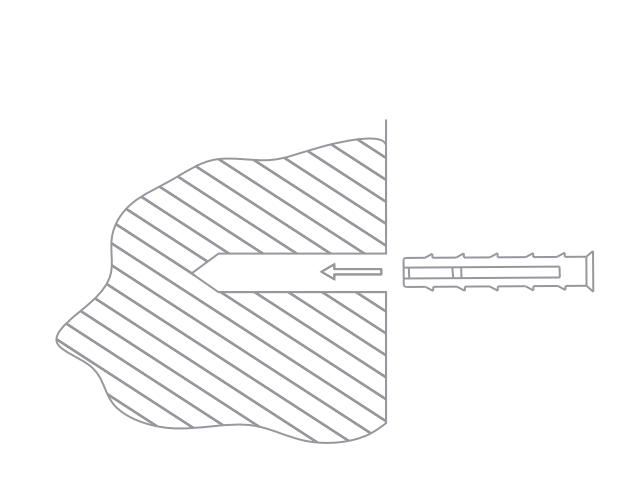

4. Inserting the Dowels:

If the surface to be mounted is made of materials such as drywall or brick, insert the appropriate dowels into the holes.

Make sure that the anchors are firmly in place.

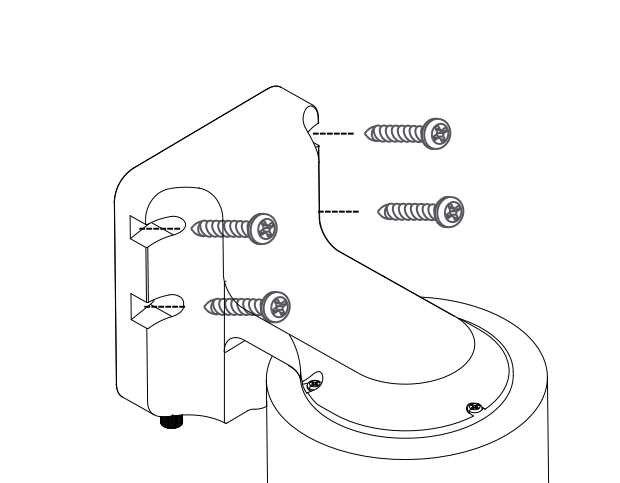

5. Fixing the Mounting Plate:

Place the mounting plate over the holes.

Secure the plate firmly using the screws. It is important that the screws hold the plate firmly.

6. Mounting the Camera:

Attach the camera to the mounting plate.

Secure the camera with the locking mechanism or screws on the plate.

Make sure that the camera is securely in place.

7. Adjusting the Camera:

Adjust the camera to the desired angle. This should provide the optimal viewing angle of the camera.

8. Installing the Hybrone Camera:

Connect the camera to the power supply and follow the steps below.

How to Setup Hybrone Outdoor Smart Wi-Fi Battery / Solar Panel Camera

Additional Tips

Try to choose a location close to the modem or router to ensure that the camera has a stable Wi-Fi connection. For security, make sure that the camera's cables are properly concealed and protected.
These steps will make ceiling or wall mounting the Hybrone Outdoor Smart Wi-Fi Battery/Solar Panel Camera a breeze.
