HY-PW2111-SB / How to Setup Hybrone Smart Relay ?

Modified on Mon, 3 Jun at 5:09 PM

About the Hybrone Smart Relay

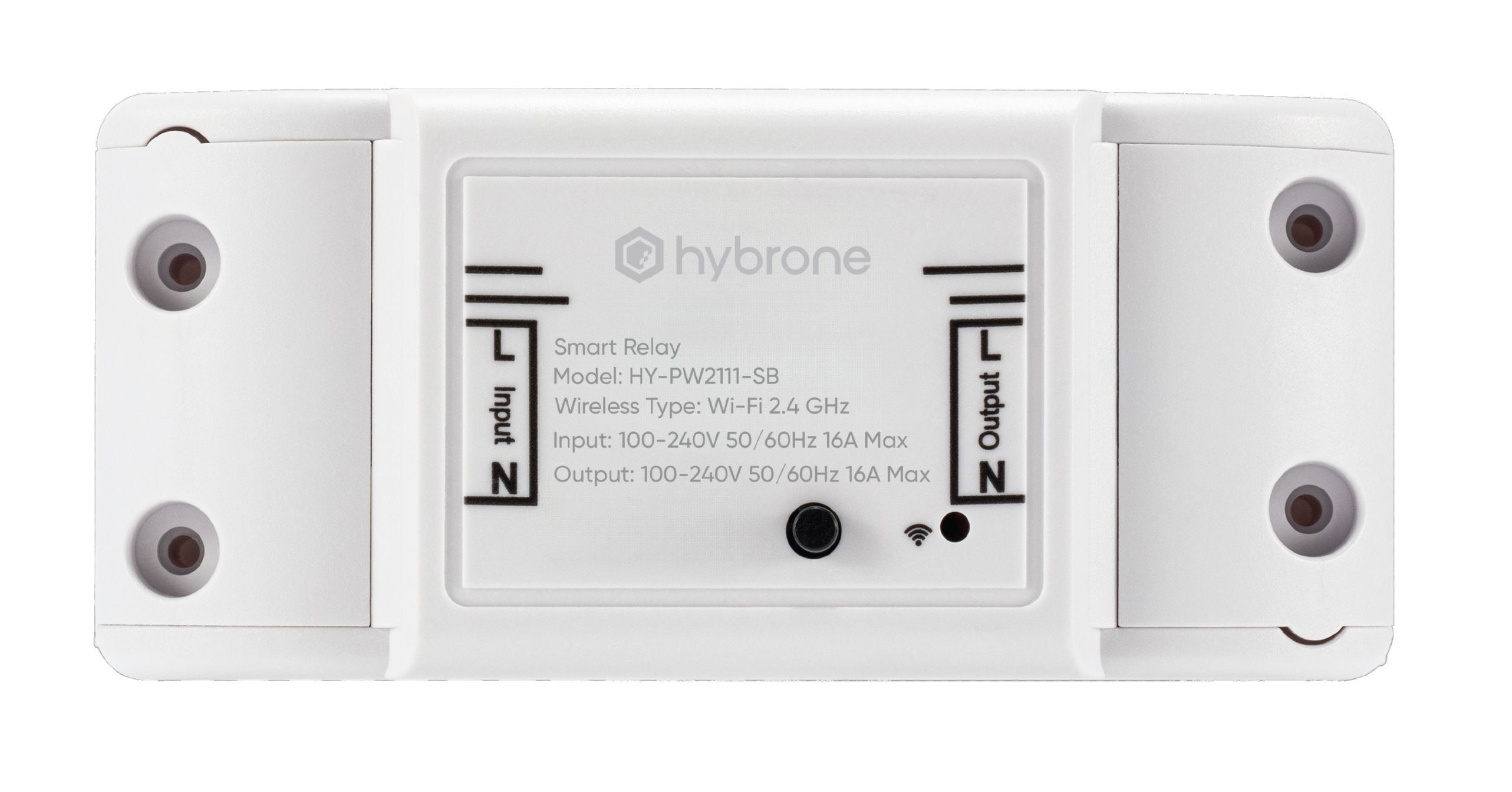

HY-PW2111-SB

Installation Diagram

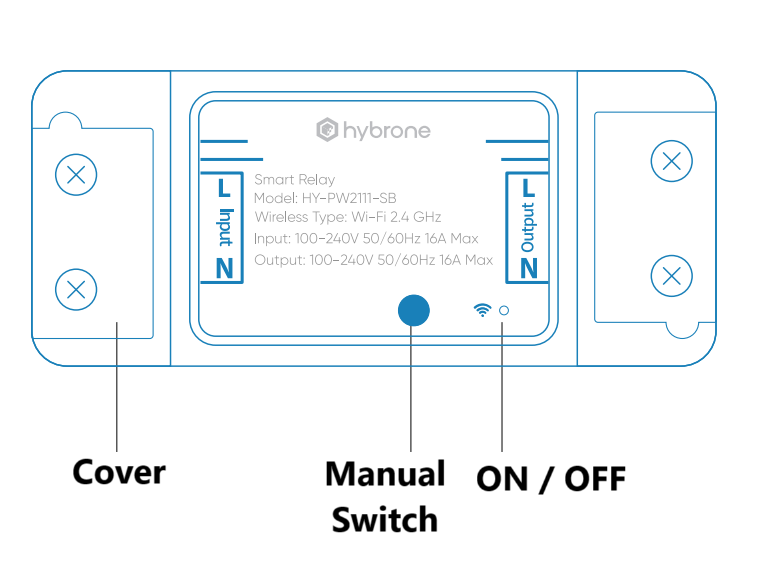

1. Device wiring instruction

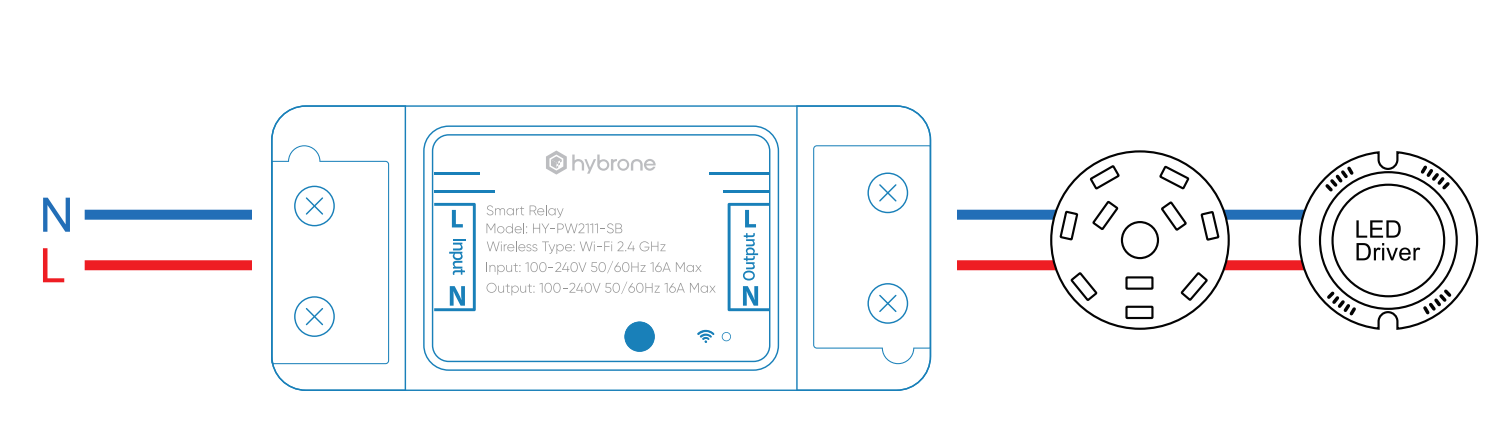

2. Ceiling LED lamp wiring instruction

3. Wiring instructions for lamp with phase only

For normal usage of the Relay (smart breaker), power should be supplied by connecting the N and L wires.

Technical Specs

Maximum Current	16A
Input Voltage	AC 100~240V 50~60
Output Voltage	AC 100~240V 50~60
Maximum Load	3000W
Standby Power Consumption	<0.5W
Wireless Connection	Wi-Fi, 2.4GHz
Wire Connection Type	Phase + Neutral 1 Relay Input
Material	PC V0 Flame Retardant
Operating Temperature	-20°C ~+50°C
Dimensions	90x38x24mm

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the Hybrone Smart Relay.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations

For device monitoring and receiving notifications, an active internet connection is required. The device setup is done through the Hybrone mobile application. The necessary steps to be taken are shown in the application's instructions. Before starting the setup via the application, router settings may need to be configured. The device supports the 2.4 GHz Wi-Fi frequency band. Router Wi-Fi frequency should be set to the 2.4 GHz band. Also, make sure to note down the Wi-Fi network name and password.

STEP 2

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone account.
