HY-SW2052-TH / How to Setup Hybrone Smart Temperature & Humidity Sensor LCD Display ?

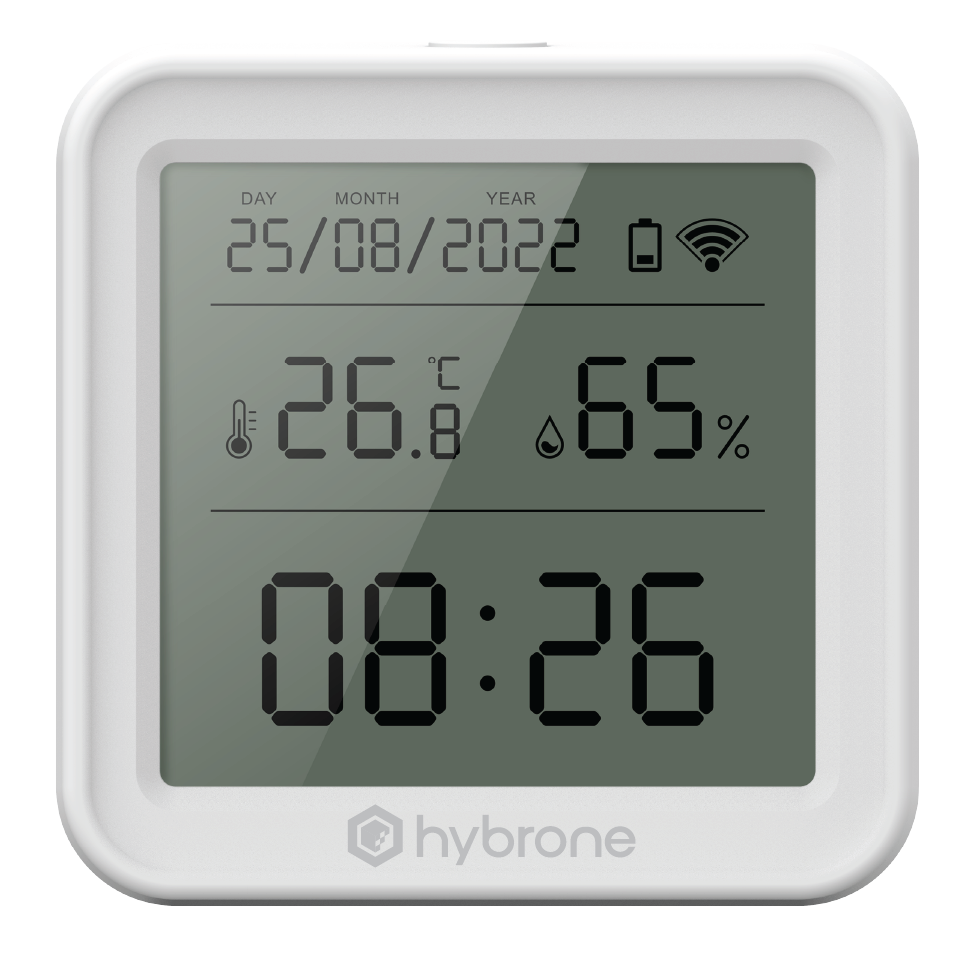

About the Hybrone Smart Temperature & Humidity Sensor LCD Display

HY-SW2052-TH

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the  Hybrone Smart Temperature & Humidity Sensor LCD Display.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
An active internet connection is required to track the device and receive notifications. Device setup is done with the Hybrone mobile application.The instructions on the application show the necessary procedures.
Before starting the setup, router settings may need to be adjusted. The device supports 2.4 GHz Wi-Fi frequency band. The router Wi-Fi frequency must be set to 2.4 GHz band. Also make a note of the Wi-Fi name and password. The device sends health information to the Hybrone server every 8 hours in the absence of any alarm. If 3 consecutive times no health information is received, the device is considered offline.

STEP 2

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

 By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone account.

Installation

Before using the device:

a) Connect your smartphone to the 2.4GHz Wi-Fi network.

b) Enter your Wi-Fi password correctly.

c) Your phone must support Android 5.0+ or iOS 13.0+.

d) If the number of devices connected to the Wi-Fi router reaches the limit, try disabling unused devices or try again with another Wi-Fi router.

ATTENTIONPlease use alkaline batteries and avoid power consumption. network immediately after installing the batteries to avoid configure the connection. Please remove heat sources keep away. Suitable for indoor use only.

Utilization

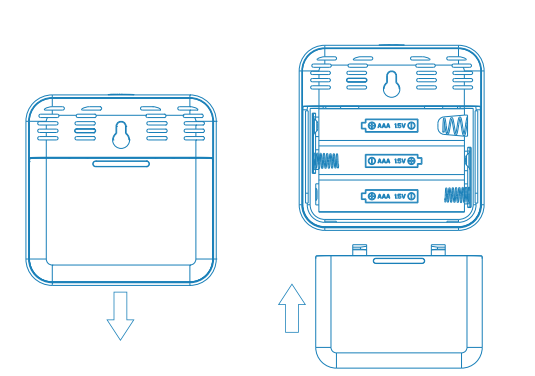

Push the battery compartment cover, place 3 alkaline batteries observing the positive and negative directions carefully, then push the cover upwards to close it.

Functions

1. Backlight Display:

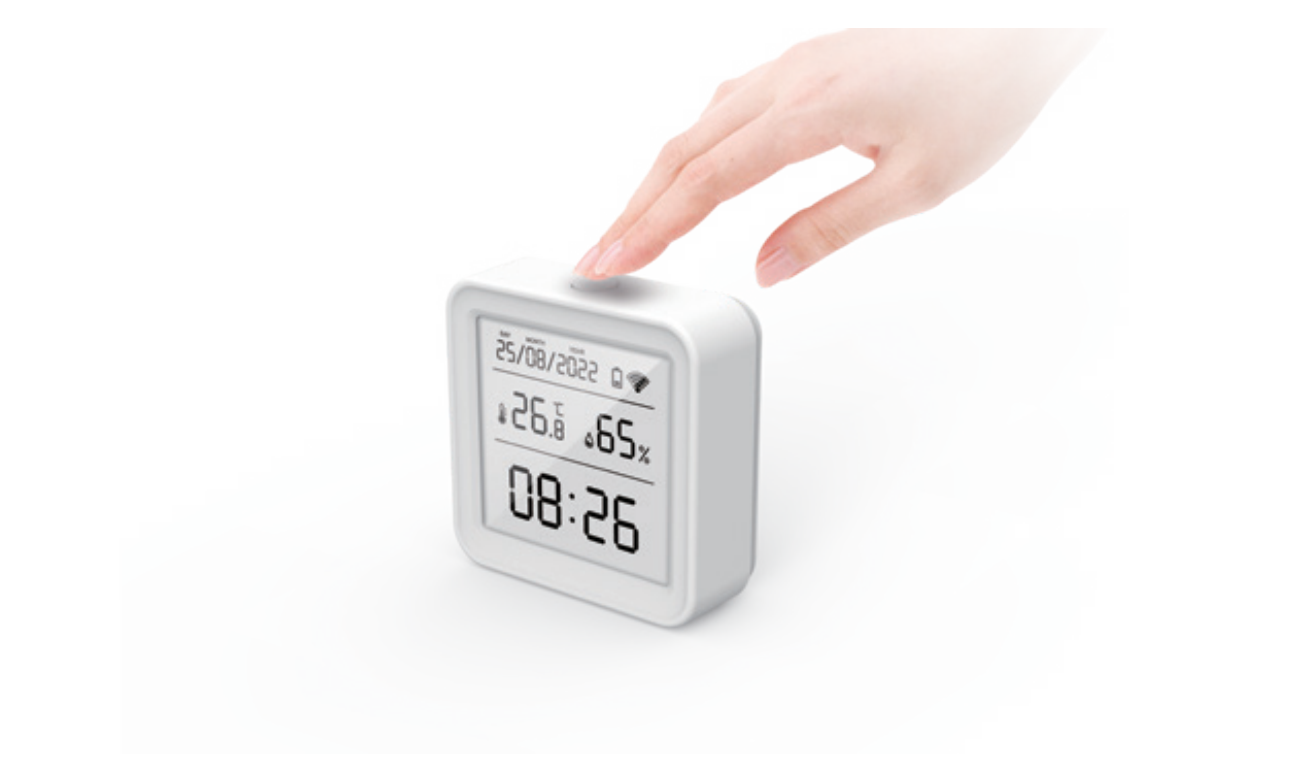

To see details on the screen in the dark, press the reset button on top of the device once; the backlight will remain on for 10 seconds.

2. Temperature Unit Change:

To switch between Celsius and Fahrenheit temperature units, briefly press the reset button in the settings.

3. Temperature & Humidity Recording:

You can access past temperature and humidity data included in your package.

4. Temperature & Humidity Alarm:

You can receive notifications from the application when the temperature and humidity exceed the specified ranges.

5. Low Battery Alarm:

When the battery power is low, the device will send a notification through the application.

FREQUENTLY ASKED QUESTIONS

1. When does the temperature and humidity value calibrate?

Approximately 30 minutes after the configuration is completed, the temperature and humidity values will start displaying the current ambient values.

2. When is the temperature and humidity displayed in the application not updated ?

a) When the difference between the ambient temperature and the temperature in the application is < ± 0.5℃.

b) When the difference between the ambient humidity and the humidity in the application is < ± 5%.

3. When will the temperature and humidity on the screen be synchronized with the data in the application ?

a) After the network configuration is completed.

b) When the device's temperature and humidity are reported to Hybrone Cloud.

c) When there is a change of ≥ 0.5℃ in ambient temperature or ≥ 5% in ambient humidity, and 2 minutes after powering the device, the temperature and humidity will be instantly reported to Hybrone.

d) When the device detects a change of < 0.5℃ in ambient temperature or < 5% in humidity, the temperature and humidity will be reported to Hybrone Cloud after 1 hour.
