HY-PW2071-WP / How to Setup Hybrone Smart Wall Mounted Smart Socket ?

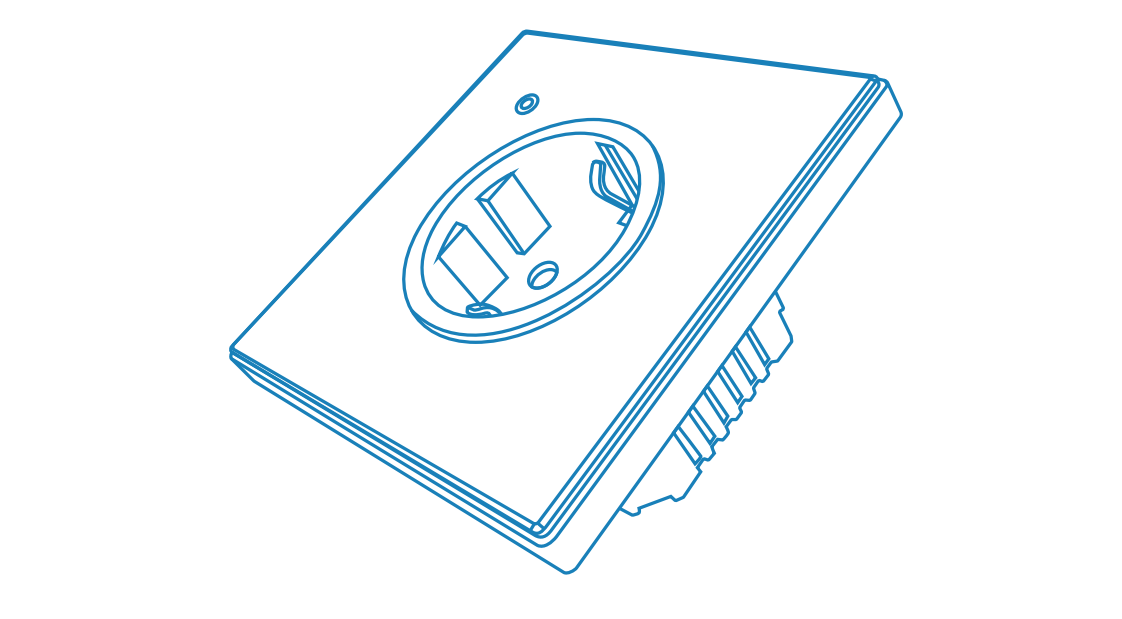

About the Hybrone Smart Wall Mounted Smart Socket

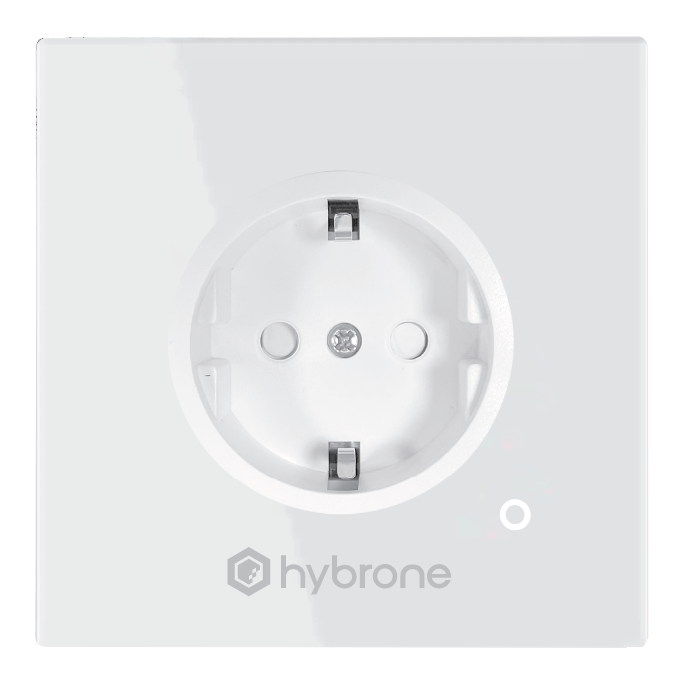

HY-PW2071-WP

Installation

1. Remove the upper and lower part on the switch using a screwdriver.

Dimensions : 86x86x44mm

Identify each corresponding slot.

2. The following wiring diagram for assembly (It is necessary to use a neutral cable in the switch.) is used.

1 - N Terminal - Neutral Wire is connected.

2 - L Terminal - Phase Wire is connected.

3 - E Terminal - Ground Wire is connected.

Wiring Diagram

3. Mount the switch on the wall.

3.1. Place the bottom part of the switch into the wall-mounted switch box.

3.2. Tighten the screws on both sides.

3.3. Attach the top casing by placing it from the top.

3.4. Turn on the power; the LED light will flash rapidly indicating that the device is in pairing mode.

4. Status Indicator Light

4.1. The Wi-Fi indicator light is off.

The switch has successfully connected to the Hybrone application.

4.2. The Wi-Fi indicator light is blinking slowly.

   - The switch failed to connect to the network.

4.3. The Wi-Fi indicator light is blinking rapidly and continuously.

 The switch is in pairing mode with the Hybrone application.

4.4. The Wi-Fi indicator light blinks once every 3 seconds.

The switch is in AP pairing mode.

4.5. How to reset the switch?

Press and hold any button for 10-12 seconds.

Hybrone Mobile Application

Hybrone mobile app for iOS and Android versions are available. App Store and Google Play can be installed from the markets. The app is available on mobile QR below according to your device's operating system.You can access it by scanning the codes.

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the Hybrone Smart Wall Mounted Smart Socket.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
An active internet connection is required to track the device and receive notifications. Device setup is done with the Hybrone mobile application.The instructions on the application show the necessary procedures.
Before starting the setup, router settings may need to be adjusted. The device supports 2.4 GHz Wi-Fi frequency band. The router Wi-Fi frequency must be set to 2.4 GHz band. Also make a note of the Wi-Fi name and password. The device sends health information to the Hybrone server every 8 hours in the absence of any alarm. If 3 consecutive times no health information is received, the device is considered offline.

STEP 2

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

 By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone account.
