HY-SW1021-MC / How to Setup Hybrone Smart Magnetic Contact ?

Hybrone Smart Magnetic Contact

HY-SW1021-MC

STEP 1

Hybrone Account

First of all, you must have a Hybrone Cloud account to deploy and manage the Hybrone Magnetic Sensor.

You can complete the device setup process by logging into your Hybrone account with the Hybrone Mobile application. In your account, select the location where you want to add the device and then click the add new devicebutton. The add new device wizard will be launched.

Communication Definitions and Considerations
An active internet connection is required to track the device and receive notifications.
Device setup is done with the Hybrone mobile application.
The instructions on the application show the necessary procedures.
Before starting the setup, router settings may need to be adjusted. The device supports 2.4 GHz Wi-Fi frequency band. The router Wi-Fi frequency must be set to 2.4 GHz band. Also make a note of the Wi-Fi name and password. The device sends health information to the Hybrone server every 8 hours in the absence of any alarm. If 3 consecutive times no health information is received, the device is considered offline.

STEP 2

Device Installation

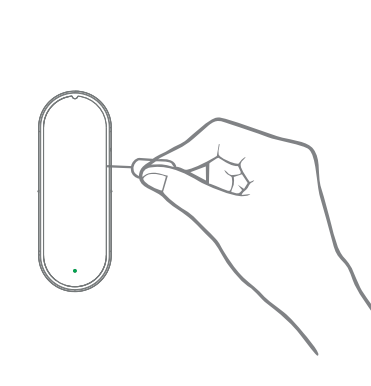

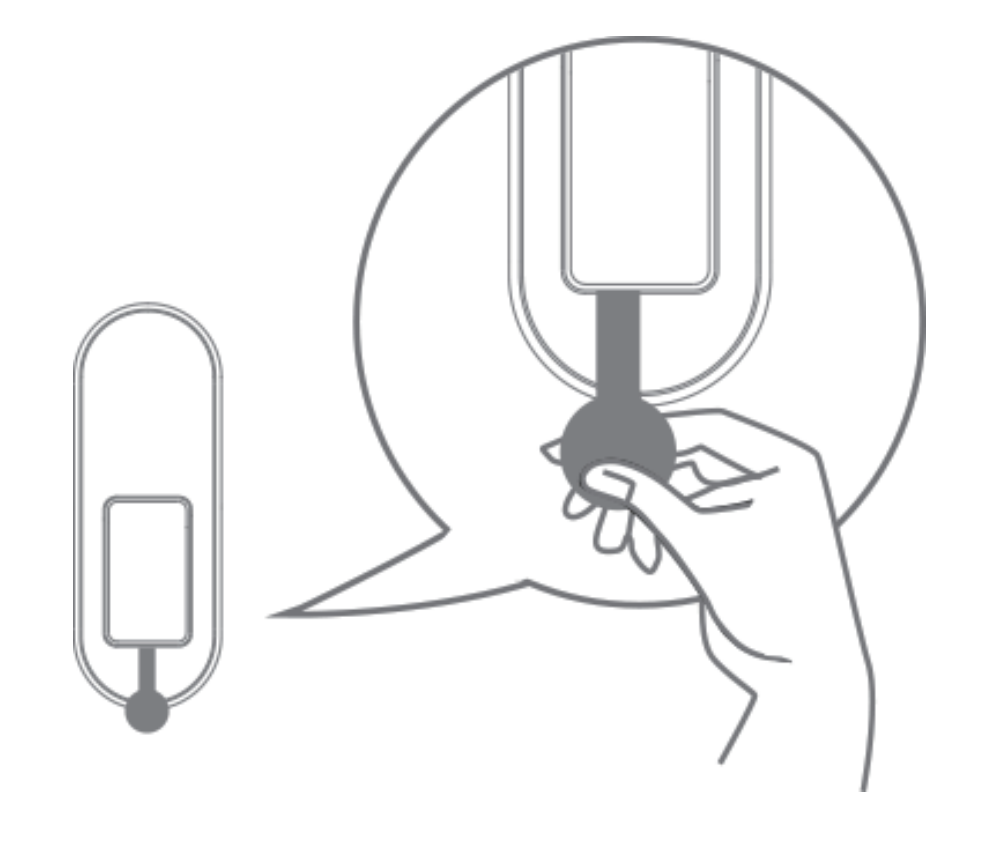

Top cover counterclockwise turn the device to open the inside and remove the battery remove the sealing tape.

In this way  the device will start working and automatically Hybrone Mobile can be found by the application will become the case.

STEP 3

Adding a Device to Hybrone

In Hybrone Mobile application, the wizard for adding a new device is started and the instructions on the screen are followed respectively. Here, device type "IoT Sensor" and device brand "Hybrone" should be selected. In the next steps, your device will be found automatically and the wizard will continue and the device addition process will be completed.

If your device cannot be added automatically, you can try the manual addition method.

 By opening the manual addition screen, you must first enter the Wi-Fi information you want to connect the device to the internet and then set the connection mode on the device.

Press and hold the connection button for 5 seconds, the blue LED will blink rapidly (about 2 times per second)

Press and hold the connection button for 5 seconds, the blue LED will flash quickly (about 2 times per second), then press and hold the button again for 5 seconds, the blue LED will flash slowly (about 1 time per 3 seconds)

Activating the Device

Once your device has been successfully added, the new device addition wizard will direct you to the device subscription package selection screen. On this screen, select the appropriate subscription package, continue the steps in the wizard and complete the process of activating your device in your Hybrone Account.

Installation Warnings

This sensor is intended for indoor use only.

Make sure the LED indicator is located at the bottom of the detector.

Please ensure that the symbol on the magnet (shown in the image below) is aligned with the mark on the detector and ensure that the installation distance between the detector and the magnet is less than 20 mm. (The magnet part can be attached to either side of the detector).

Avoid mounting on metal doors. (Metal doors can affect detection range and wireless distance).

WARNING

Attention should be paid to the following during installation with double-sided adhesive:
1.Ensure that the installation surface is smooth, flat, sturdy, dry, and clean.
2. Regularly check whether the product is securely attached to the installation surface after installation.
Do not subject the product to strong impacts and vibrations, as this may cause damage to the product and accessories, leading to product malfunction.
Organic solvents cannot be used to clean the product. The user can clean the product surface with a soft cloth.

Installation

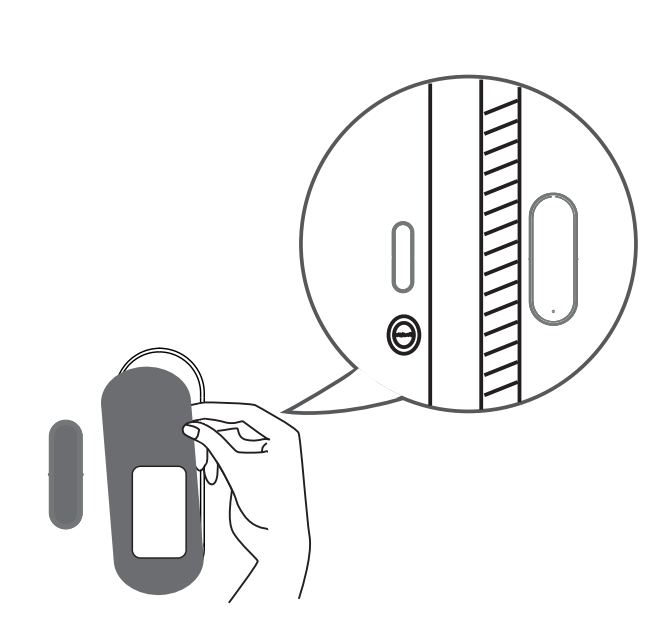

1. Remove the label from the back of the detector and stick the detector to the required area.

 2. The detector should be mounted on a fixed area such as the door frame.

3. The magnet can be mounted on an active area such as the door panel. The image above is for reference purposes only.

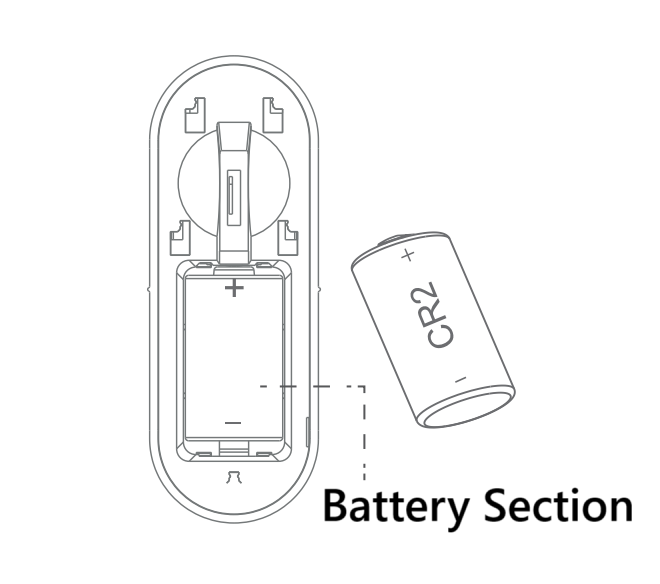

Battery Replacement

1. Remove the detector from the mounting base.

2. Take out the used battery from the compartment.

3. Insert a new battery into the compartment.

4. Place the detector back onto the base.

Attention: Please dispose of the used battery in the recycling bin to protect the environment and nature.

ATTENTION
The information contained in the user manual is for reference only and does not constitute a commitment of any kind. Without the written permission of the manufacturer, no person or organization may remove or copy part or all of the contents of this
User manual and shall not disseminate it in any way. As technology is constantly updated, the manufacturer reserves the right to make changes to the user manual without prior notice. If the user manual and actual operations are inconsistent, the final interpretation herein rests with the manufacturer.
