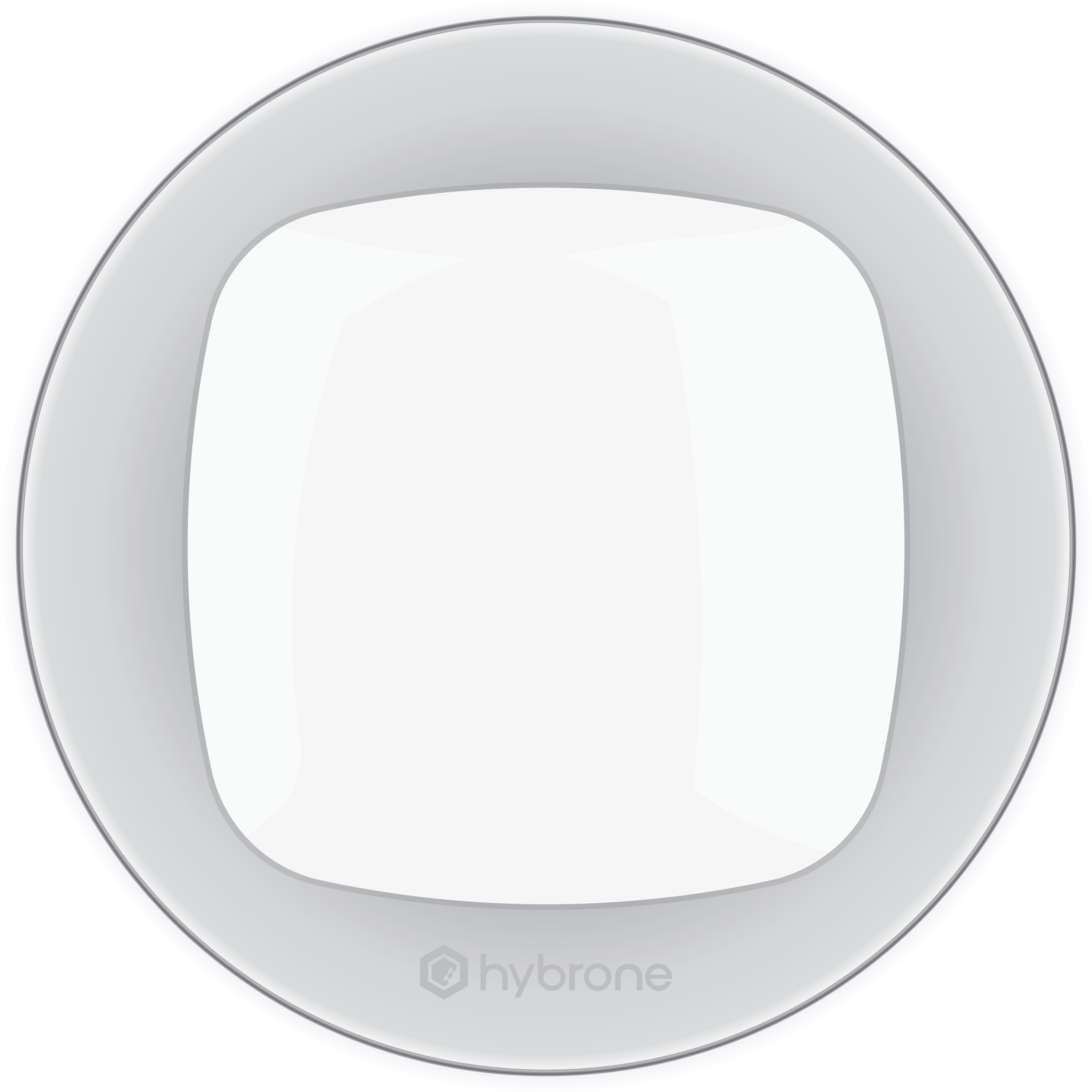

About the Hybrone Smart Motion Wi-Fi Sensor
HY-SW1011-MS
Perception Area

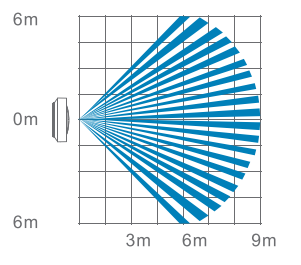

Top View

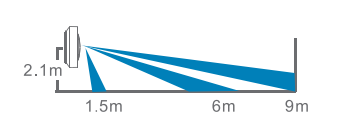

Side View
Technical Specifications
Working Voltage | DC3V(CR123A / CR17335 x1) |
| Detection Distance | Max. 9mt. 25° (Detection distance may vary according to ambient temperature) |
| Detection Angle | 90° |
| Communication | Wi-Fi 2.4GHz |
| Operating Temperature | -10°C ~+50°C |
| Operating Ambient Humidity | <95%RH (non-condensing) |
| Dimensions | 80mm (diameter) x 28.5mm (height) |
| Animal Detection Level | 11kg or less |
| Wi-Fi Protocol | IEEE 802.11 b/g/n |
Device Indicators
| Device Status | LED Indicator |
| EZ Network Connecting | Blue Led Fast Flasher |
| AP Network Connecting | Blue Led Slow Flasher |
| Network Connecting Success / Failure | Blue Led Off |
| Alarm | Blue Led Flashes Once |
| Initialization Status | The sensor is activated, Blue LED flashes for 30 seconds |
