HY-CW3021-F / How to Setup the Hybrone Fold Wireless Smart Camera ?

Hybrone Fold Wireless Smart Camera

HY-CW3021-F

Click on the Image Below for IOS Hybrone Mobile

Router Settings Before Setup

An active internet connection is required to control the device and watch video images.

The device setup is done via the Hybrone mobile application.

The necessary steps are shown in the instructions on the application.

You may need to configure the router settings before starting the setup through the application.

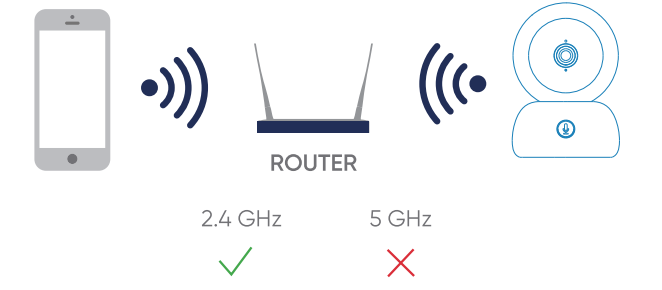

The device supports the 2.4 GHz Wi-Fi frequency band. The router's Wi-Fi frequency should be set to the 2.4 GHz band. Additionally, it will be helpful to note down the Wi-Fi name and password.

You must have a Hybrone account to log in to the app. You can log in to the app with your Hybrone account information.

STEP 2

After logging in, select the relevant location on the main page of the application and press the add new devicebutton.

Adding a new device wizard will display the instructions for adding a device. The device addition wizard is started with the Start button.

STEP 3

In the first step of the add device wizard, general information is entered. Device type field is selected as IoT and device brand field is selected as Hybrone.

Press the Continue button and in the connection configuration step, activate the Wi-Fi and Bluetooth features of the mobile device and then press the Continue button.

STEP 4

In the Wi-Fi information step, the Wi-Fi name (SSID) and Wi-Fi password are entered. In this step, make sure that the Wi-Fi network is in the 2.4 GHz frequency band.

STEP 5

In this step, the device is reset to factory settings.

The device reset process must be completed by following the device reset instructions specified in the mobile application.

In the last step, confirm that you have detected the device LED indicator or the device sound as indicated.

STEP 6

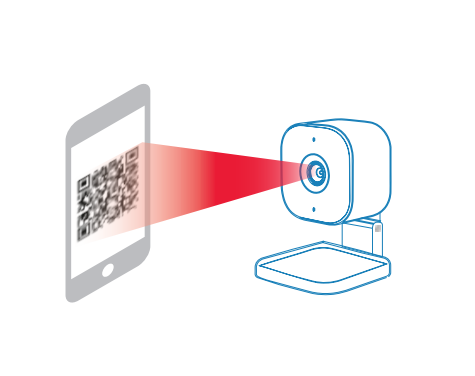

In the device connection step, the QR code shown on the mobile application screen is scanned with the device.

Observe a distance of 15 - 20 cm and the required angle. If the camera lens is covered or has a protective film on it, it is removed.

STEP 7

After the device has been successfully added, it is given a name. Then select the area where the device is located.

STEP 8

In the last step, select the Hybrone device subscription package to activate the device. Then the device addition process is completed.

Device subscription package payment must be completed on the subscription management screen.
